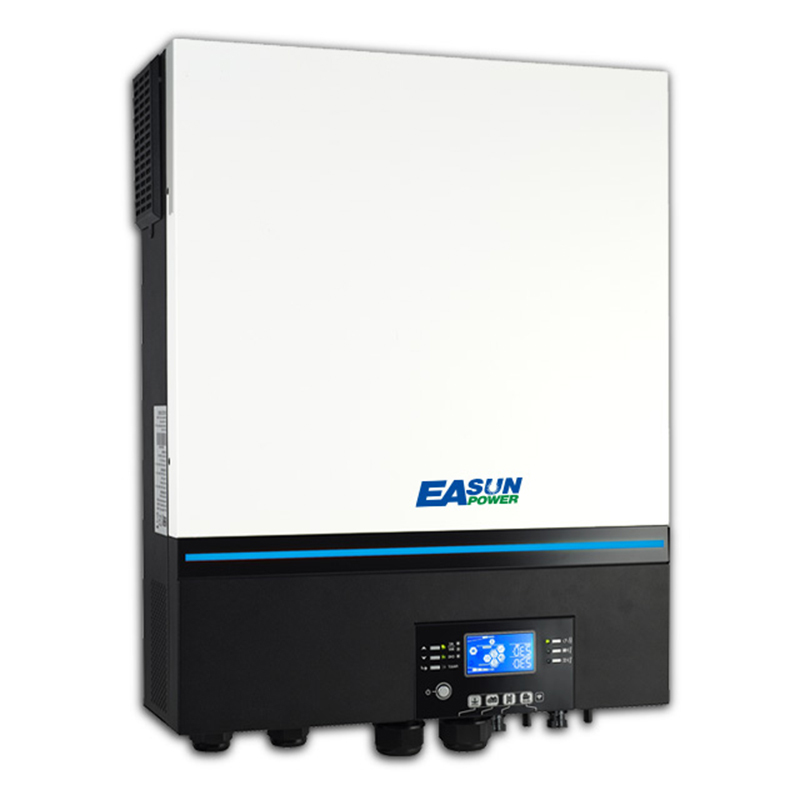

EASUN 33KW Solar inverter Pure sine wave inverter
.jpeg?w=1920&h=753)
| *Buint-in Wifi For Mobile Monitoring(Android/IOS Apps Are Available) |
| *Supports USB On-the-Go function |
| *Lithium battery BMS support (Pylontech, Weco, Soltaro) |
| *Replaceable fan design for ease of maintenance |
| *Batteryless operation (single unit mode only) |
| *Configurable AC/PV Outout Usage Timer And Prioritization |
| *Selectable high power charging current Selectable input voltage range for home appliances and personal |
| *Compatible to Utility Mains or generator input |
| *Built-in anti-dust kit |
| *Optional DC output for DC fan, LED bulb,router and so on |
| *Parallel operation up to 6 units,Built-in parallel kit |
| *Detachable LCD remote displayy |
| *High PV input design, 500V (Voc) max input |
|
MODEL |
Isolar SMW 11KW |
|
Rated Power |
11000VA/11000W |
|
Parallel Capability |
YES, 6 units |
|
INPUT |
|
|
Voltage |
230 VAC |
|
Selectable Voltage Range |
170-280 VAC (For Computers) 90-280 VAC (For Home Appliances) |
|
Frequency Range |
50 Hz/60 Hz (Auto sensing) |
|
OUTPUT |
|
|
AC Voltage Regulation (Batt. Mode) |
230VAC ± 5% |
|
Surge Power |
22000VA |
|
Efficiency (Peak) |
93% |
|
Transfer Time |
10 ms (For Personal Computers), 20 ms (For Home Appliances) |
|
Waveform |
Pure sine wave |
|
No Load Power Consumption |
<70W |
|
Dual Outputs |
Yes |
|
BATTERY |
|
|
Battery Voltage |
48 VDC |
|
Floating Charge Voltage |
54 VDC |
|
Overcharge Protection |
63 VDC |
|
SOLAR CHARGER & AC CHARGER |
|
|
Solar Charger Type |
MPPT |
|
Maximum PV Array Power |
11000W |
|
MPPT Range @ Operating Voltage |
90 ~ 450 VDC |
|
Maximum PV Array Open Circuit Voltage |
500 VDC |
|
Maxmum Solar Charge Current |
150A |
|
Maximum AC Charge Current |
150A |
|
Maximum Charge Current |
150A |
|
PHYSICAL |
|
|
Dimension, D x W x H (mm) |
147.4 x 432.5 x 553.6 |
|
Net Weight (kgs) |
18.4 |
|
Communication Interface |
USB/RS232/RS485/WiFi/Dry-contact |
|
OPERATING ENVIRONMENT |
|
|
Humidity |
5% to 95% Relative Humidity(Non-condensing) |
|
Operating Temperature |
-10°C to 50°C |
|
Storage Temperature |
-15°C to 60°C |
|
STANDARD |
|
|
Compliance Safety |
CE |
