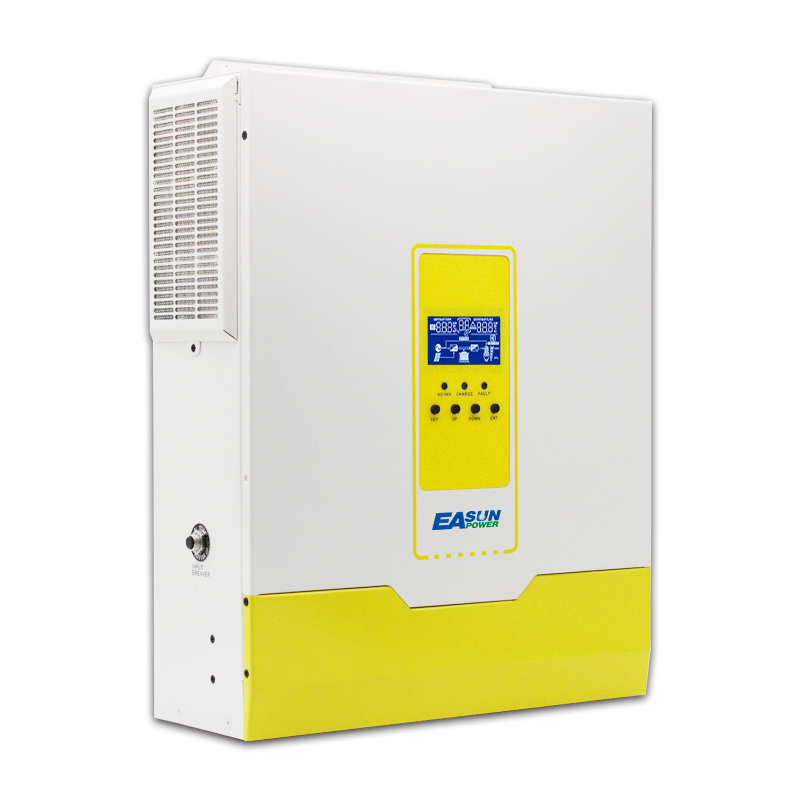

Easun Latest 5.6KW Hybrid Inverter 100A MPPT Battery Charger 48V With Parallel Function
$580.00 USD
Υπολογισμός των τελών αποστολής στο ταμείο κατά την ολοκλήρωση της αγοράς
Ποσότητα
IGrid-VX-IV-5.6KW Monitor Software
| 1.Max can be 9 pcs in parallel with optional kit |
| 2.Efficiently work with or without battery |
| 3.MPPT Solar Charge Controller up to 6000W solar panel |
| 4.Built - in Wifi for mobile monitoring (Requires APP) |
| 5.Compatible with (Li-ion,LiFePo4 and etc.) batteries |
| 6.Battery Equalization |

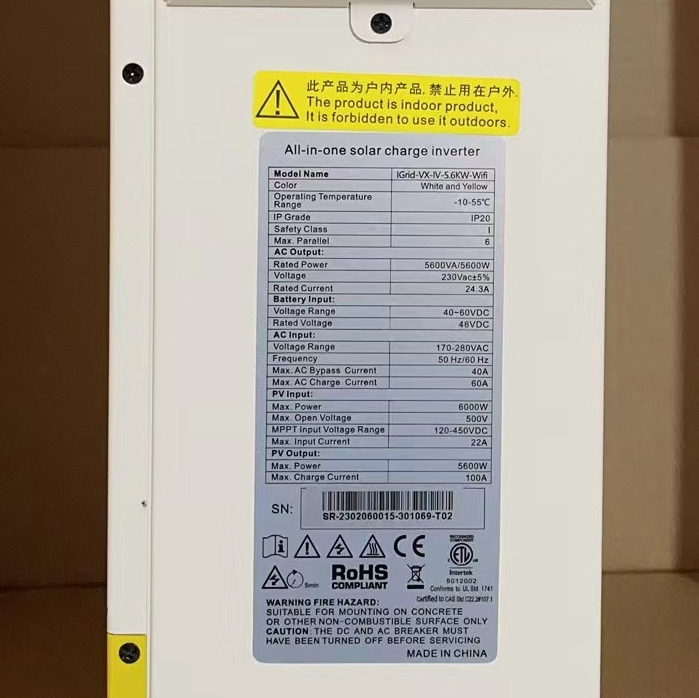

| Model: | IGrid-VX-IV-5.6KW-Wifi |
| Warranty: | 1 year |
| Parallel Function: | yes, up to 9 units, support three-phase |

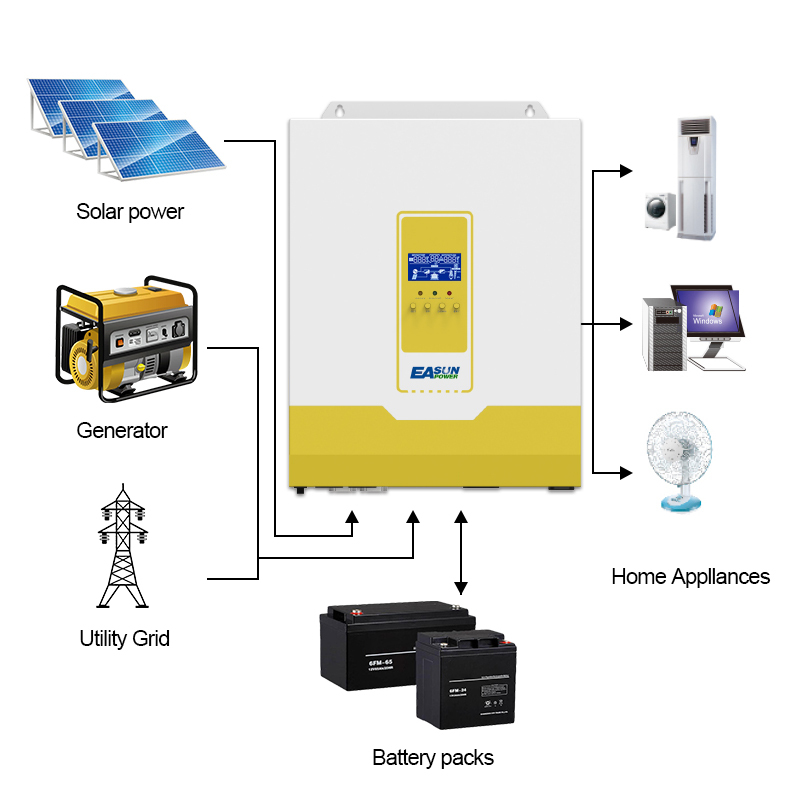

| Type: | off grid + on grid |
| Rated Load Power: | 5600W |
| Max Charging Current: | 100A |

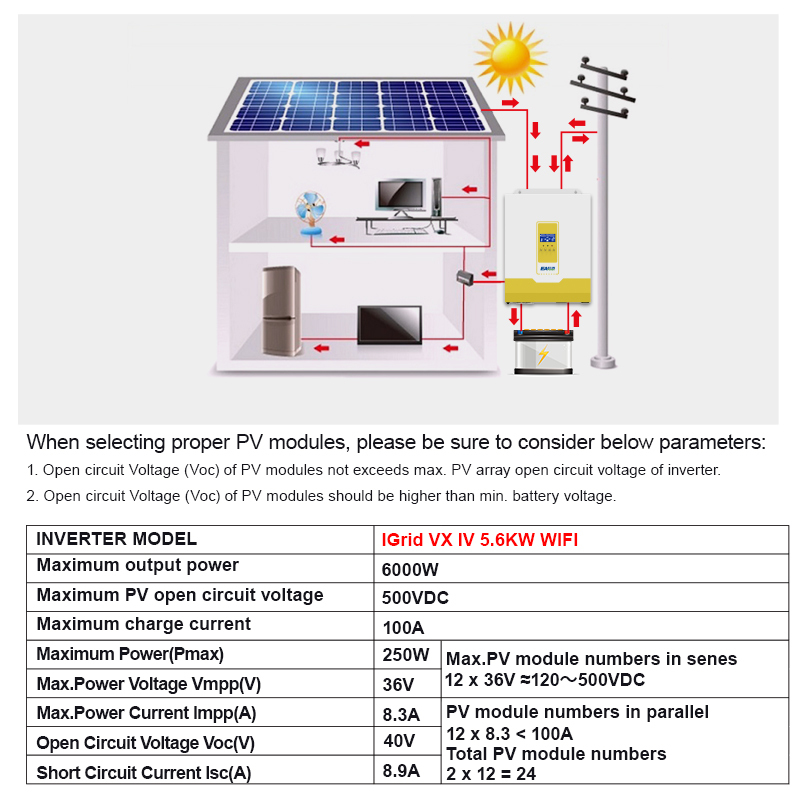

| Max PV Array Power: | 6000W |
| Max PV Array Current: | 22A |
| PV Input Voltage Range: | 120~500VDC |
| MPPT Working Voltage: | 150~450VDC |
| Battery Voltage: | 48V |
| Battery Type: | lead-acid battery or lithium battery |
| AC Input Voltage: | 220/230Vac |
| AC Output Voltage: | 230Vac ±5% |
| Surge Power: | 10000VA |
| Output Frequency: | 50Hz/60Hz |
| Inverter Efficiency: | 95% |
| Output Waveform: | pure sine wave |

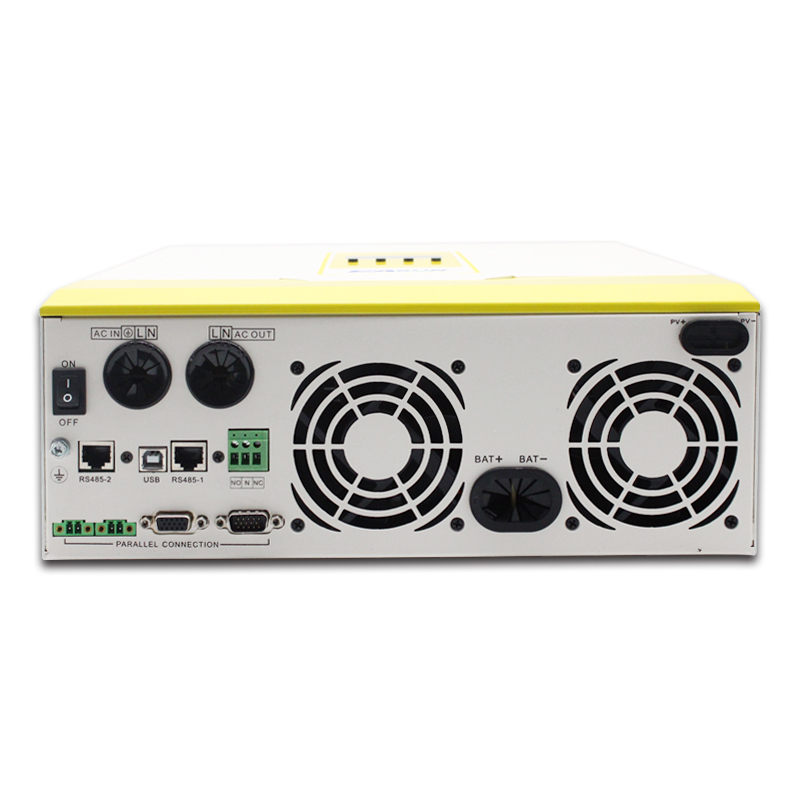

| Communication: | USB/RS485(WiFi/GPRS)/Dry contact control |
| Transfer Time: | 10ms (typical) |
| Humidity: | 5% to 95% (Conformal coating protection) |
| Operating Temperature: | -10°C to 55°C |
| Dimension.D*W*H(mm): | 426mm*322mm*124mm |
| Net Weight(kg): | 10.5kg |
