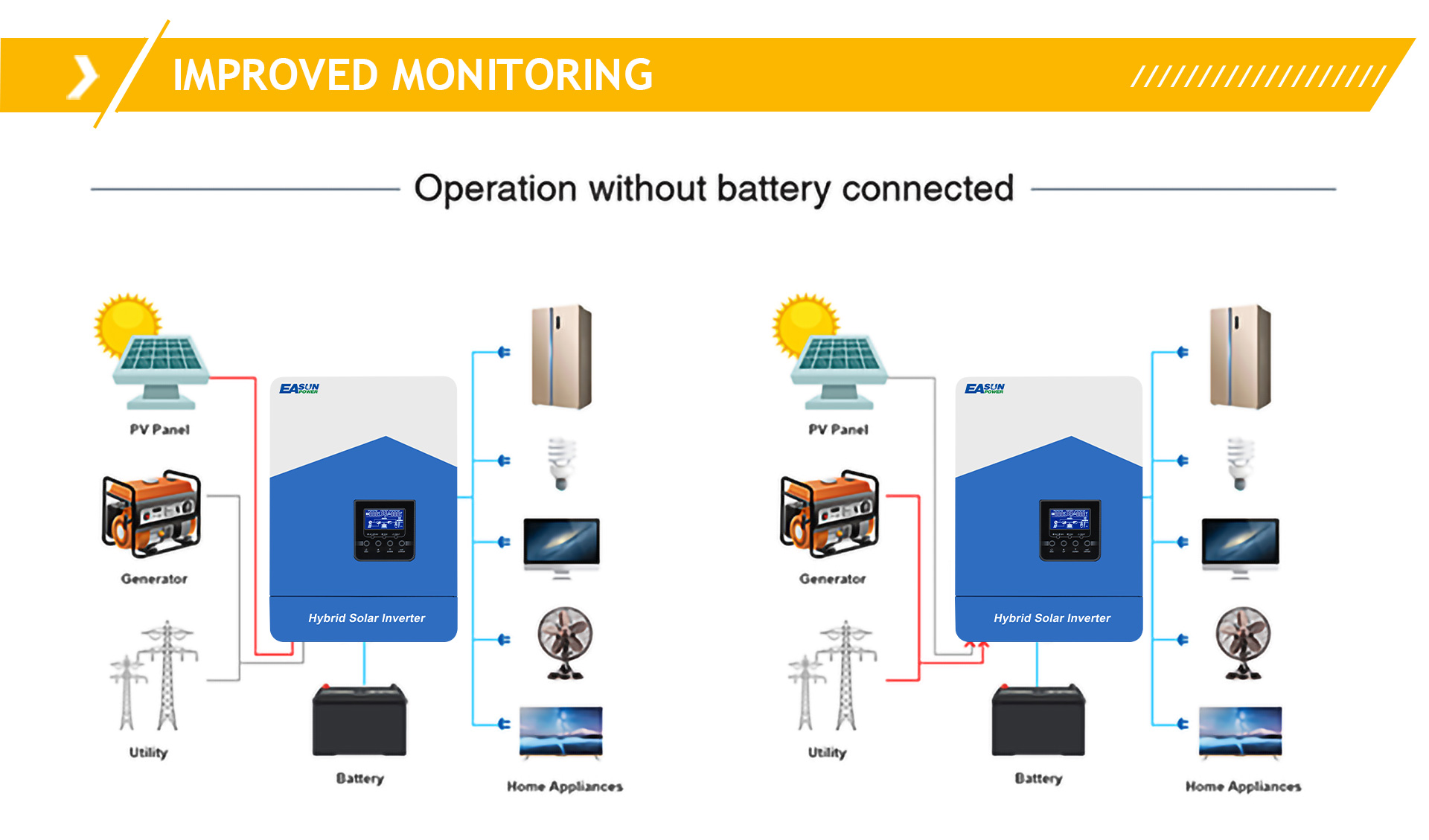

Attention: This model belongs to high PV input and supports working without battery
Why you choose SMG II 6.2KW or SMH III 6.2KW ? What's the difference between them ?Check via this link:
https://www.easun-energy.com/blogs/news/why-you-choose-smh-iii-6.2kw-or-smg-ii-6.2kw?
| Pune sine wave inverter |
| Configurable input voltage range for home appliances and personal computers via LCD setting |
| Configurable battery charging current based on applications via LCD setting |
| Configurable AC/Solar Charger priority via LCD setting |
| Compatible to mains voltage or generator power |
| Auto restart while AC is recovering |
| Overload/ Over temperature/ short circuit protection |
| Smart battery charger design for optimized battery performance |
| Cold start function |
| Need to connect the battery to start, 48V lithium battery is recommended |
| WIFI/GPRS |
|

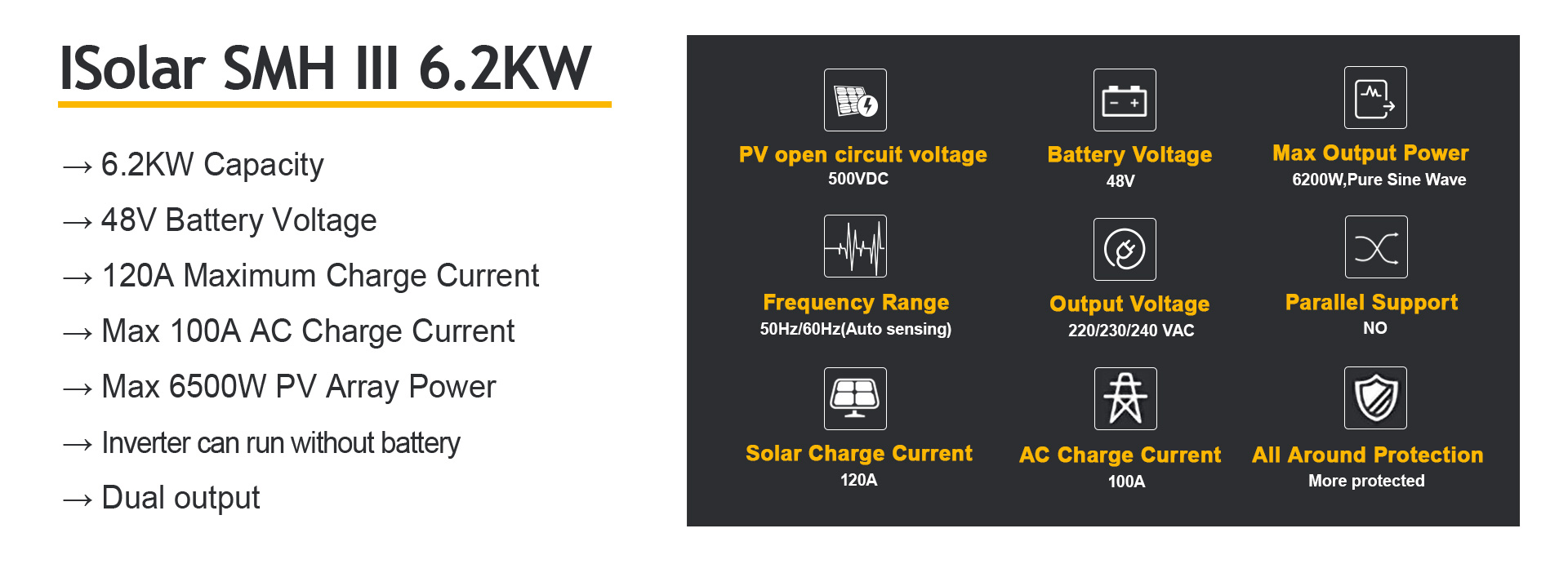

Models |
ISolar-SMH-III-6.2KW-wifi |
|
Rated Power |
6200VA/6200W |
|
INPUT |
|
|
Voltage |
230Vac |
|
Selectable Voltage Range |
(170Vac~280Vac) ±2%；(90Vac-280Vac)±2% |
|
Frequency Range |
50Hz/ 60Hz (Auto detection) |
|
OUTPUT |
|
|
AC Voltage Regulation (Batt.Mode) |
230VAC±5% |
|
Surge power |
14000VA |
|
Transfer Time |
10ms (for personal computers) / 20ms (for home appliances) |
|
Wave form |
Pure Sine Wave |
|
BATTERY & AC CHARGER |
|
|

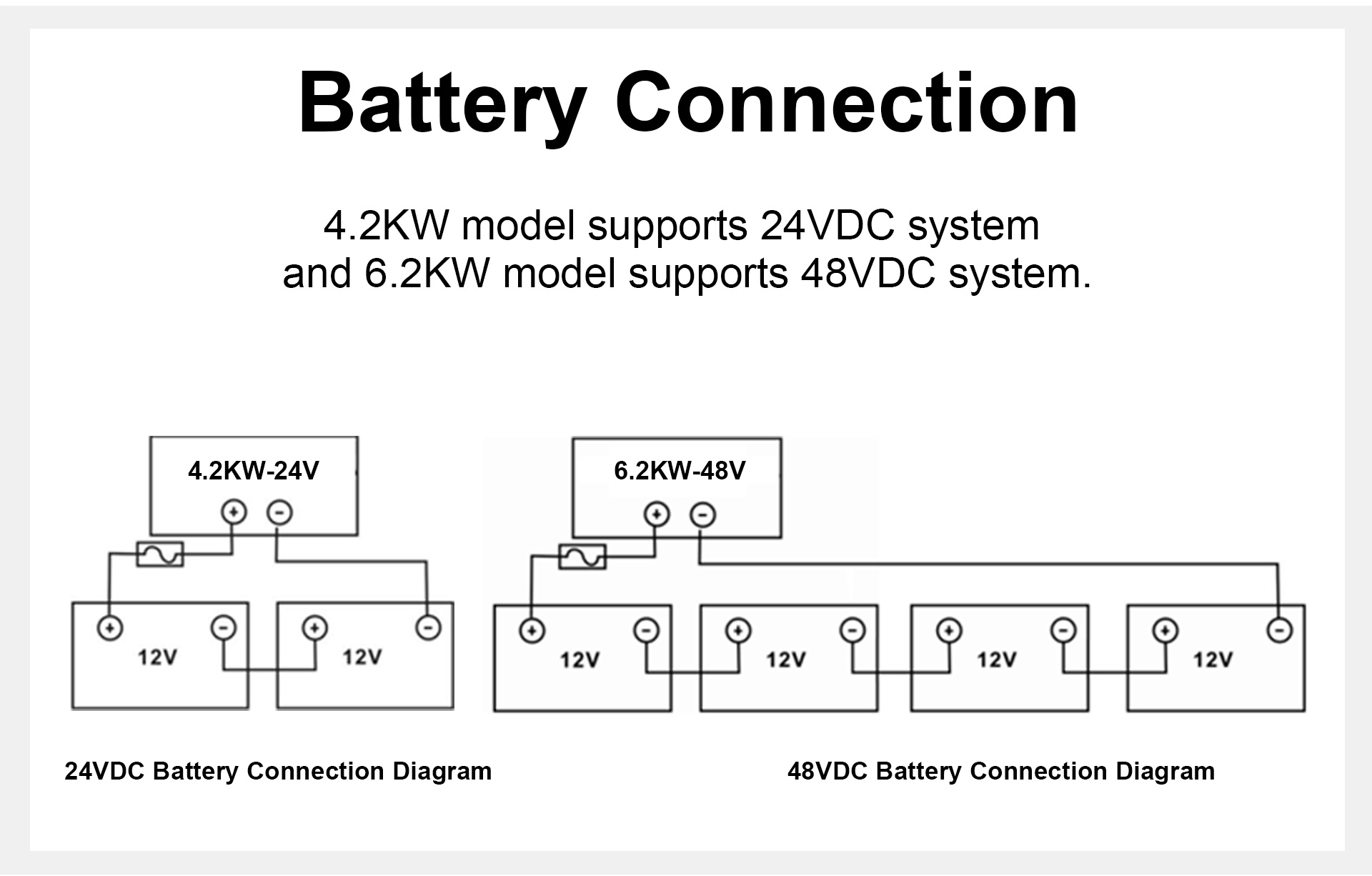

Battery Voltage |
48VDC |
|
Floating Charge Voltage |
54VDC |
|
Overcharge Protection |
61VDC |
|
Maximum charge current |
80A |
|
SOLAR CHARGER |
|
|
MAX.PV Array Power |
6000W |
|
MPPT Range@ Operating Voltage |
55-450VDC |
|
Maximum PV Array Open Circuit Voltage |
450VDC |
|
Maximum Charging Current |
110A |
|
Maximum Efficiency |
98% |
|
PHYSICAL |
|
|
Dimension.D*W*H(mm) |
423*310*120mm |
|
Net Weight (kgs) |
10.0kg |
|

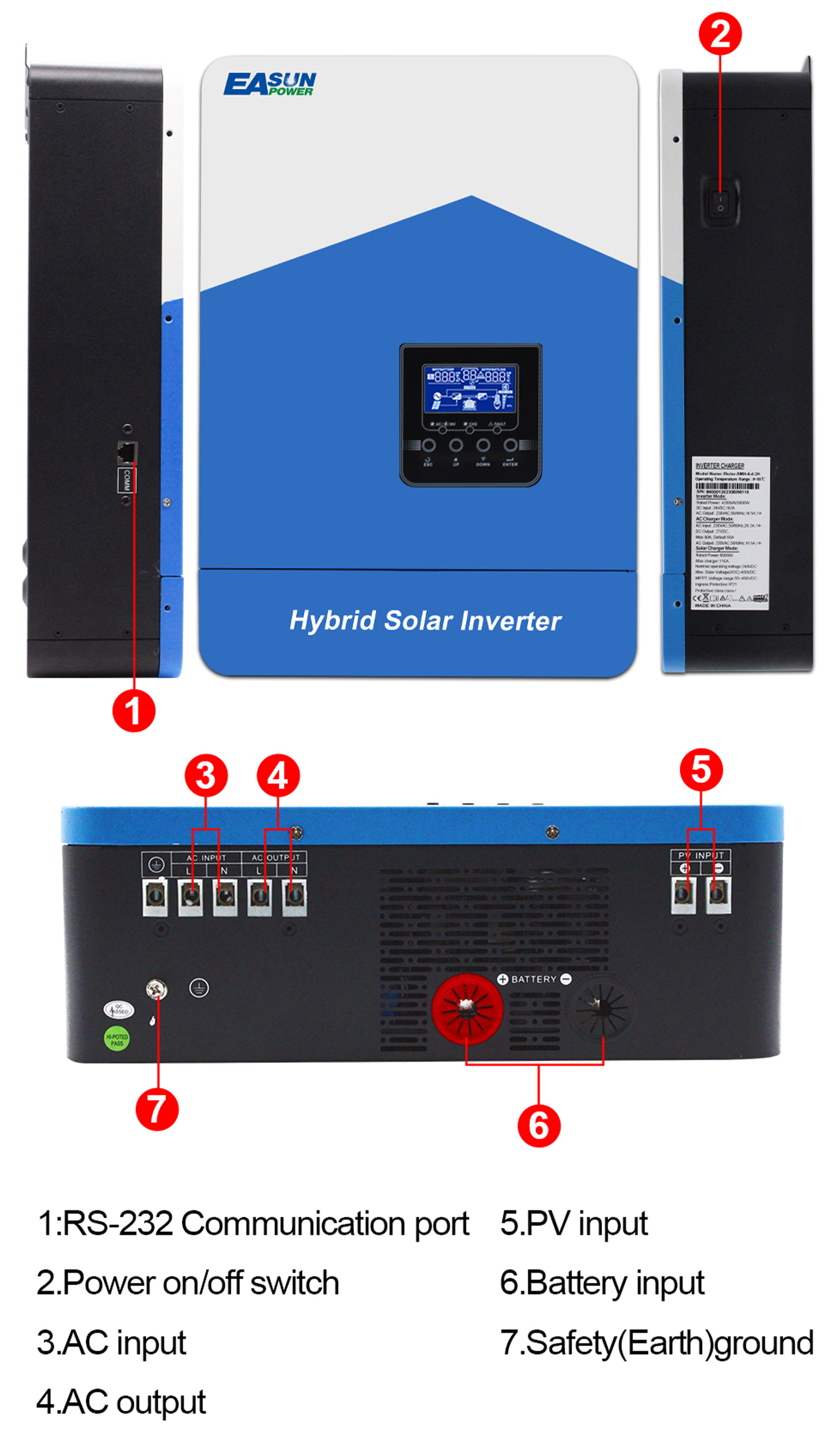

Communication Interface |
RS232/RS485(Standard) / GPRS/WIFI(Optional) |
|
OPERATING ENVIRONMENT |
|
|
Humidity |
5% to 95% Relative Humidity(Non-condensing) |
|
Operating Temperature |
-10°C to 55°C |
|
Storage Temperature |
-15°C to 60°C |
