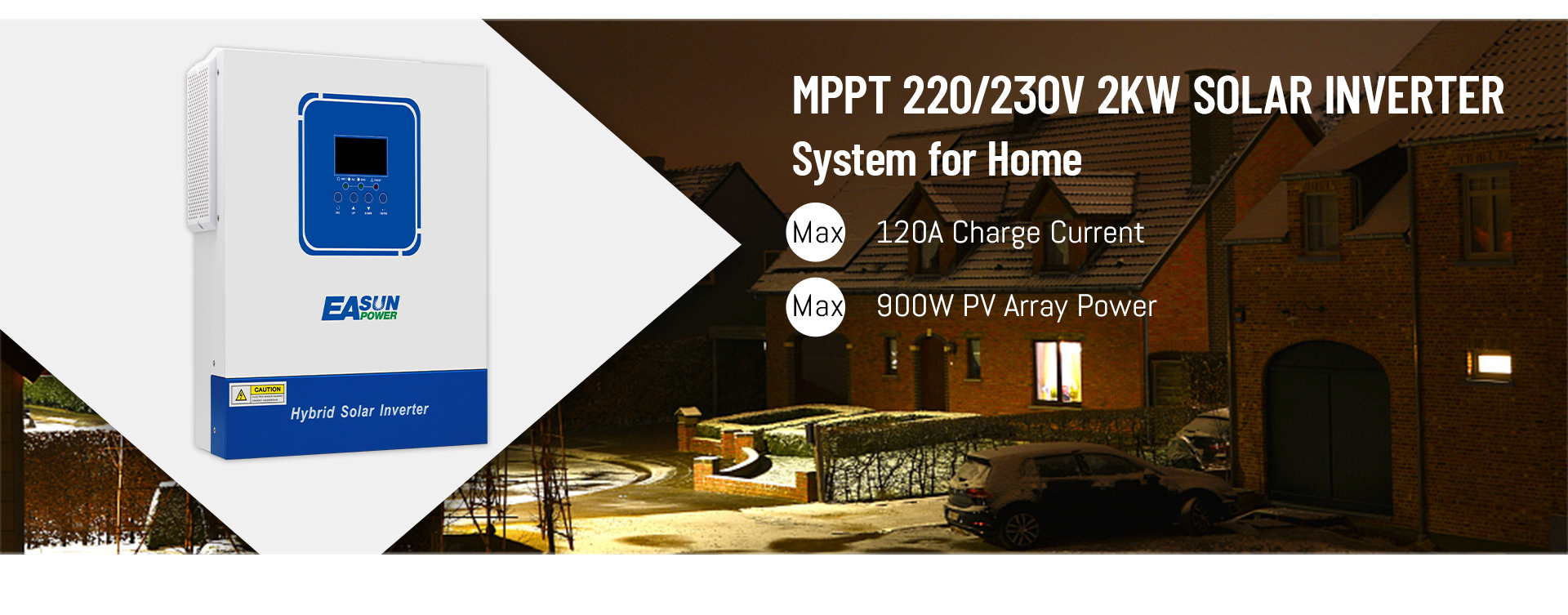

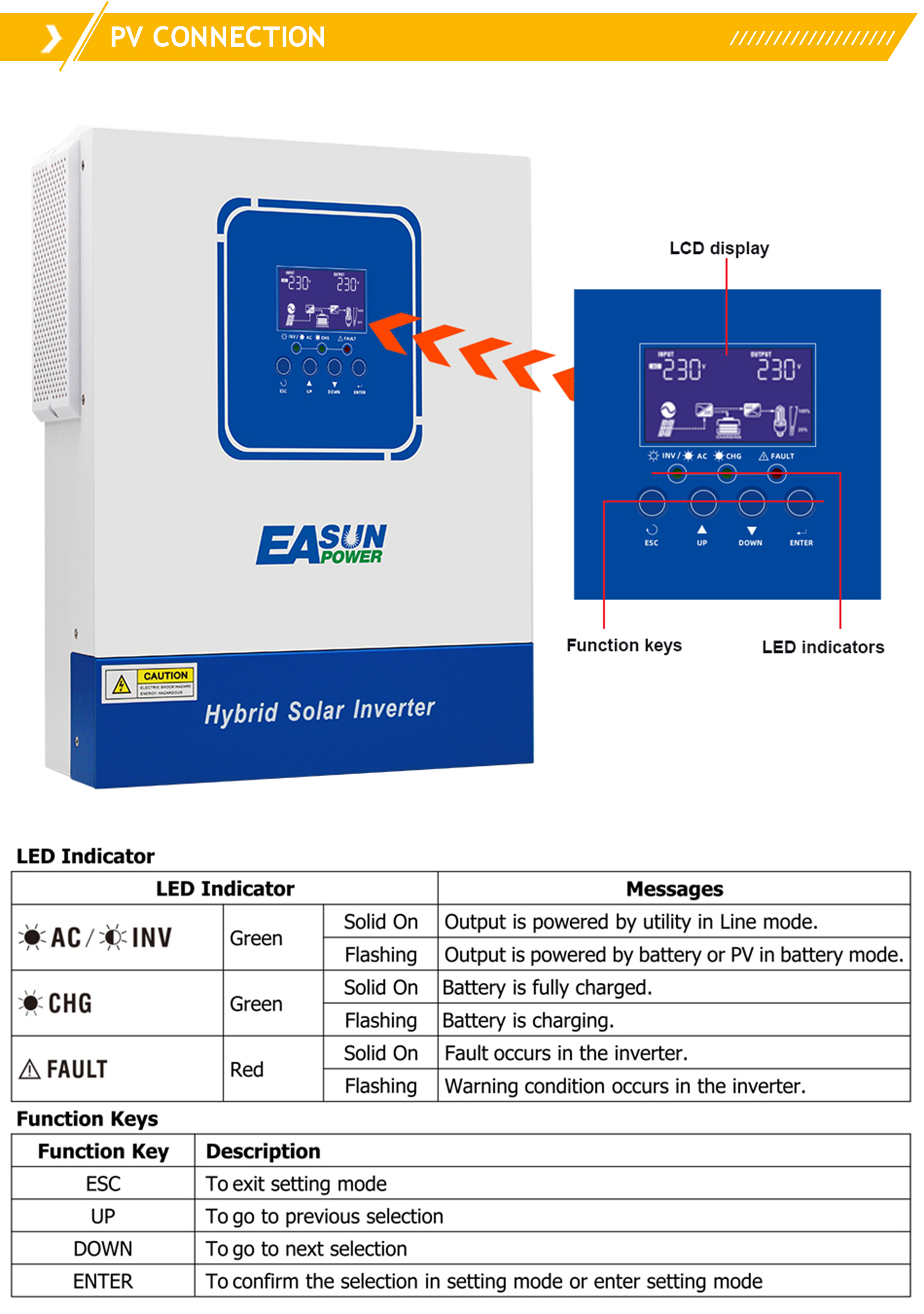

This is a multi-function inverter charger, combining functions of inverter, solar charger and battery charger to offer uninterruptible power support with portable size. Its comprehensive LCD display offers user-configurable and easy-accessible button operation such as battery charging current, AC/solar charger priority, and acceptable input voltage based on different applications.
Feature:
1.Pure sine wave inverter
2.Buit-in MPPT solor charge controlier
3.Selectable input voltage range for home appliances and personalcomouters.
4.Selectable charging current based on applications
5.Configurable AC/Solar input priority via LCD setting
6.Compatible to mains voltoge or generotor power
7.Auto restart while AC is recovering
8.Overfoad ond short circuit protection
9.Smart battery charger design for optimized battery performance
10.Cold start funtion
|

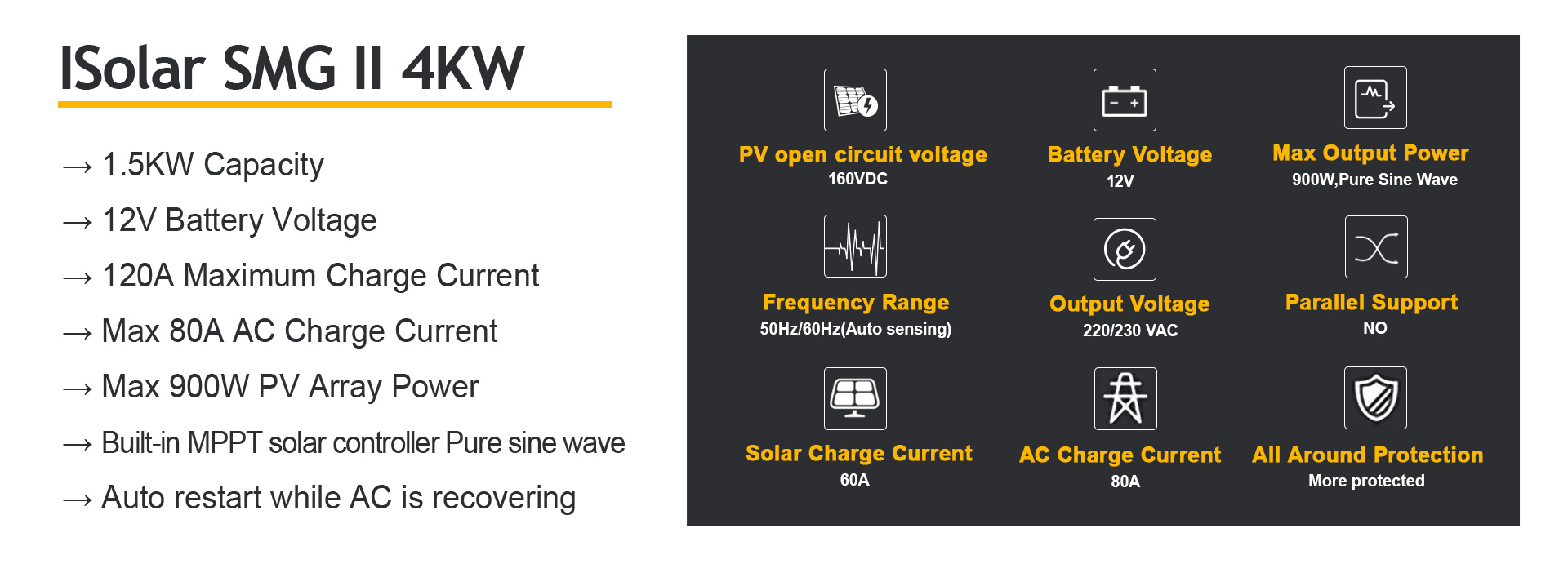

MODEL |

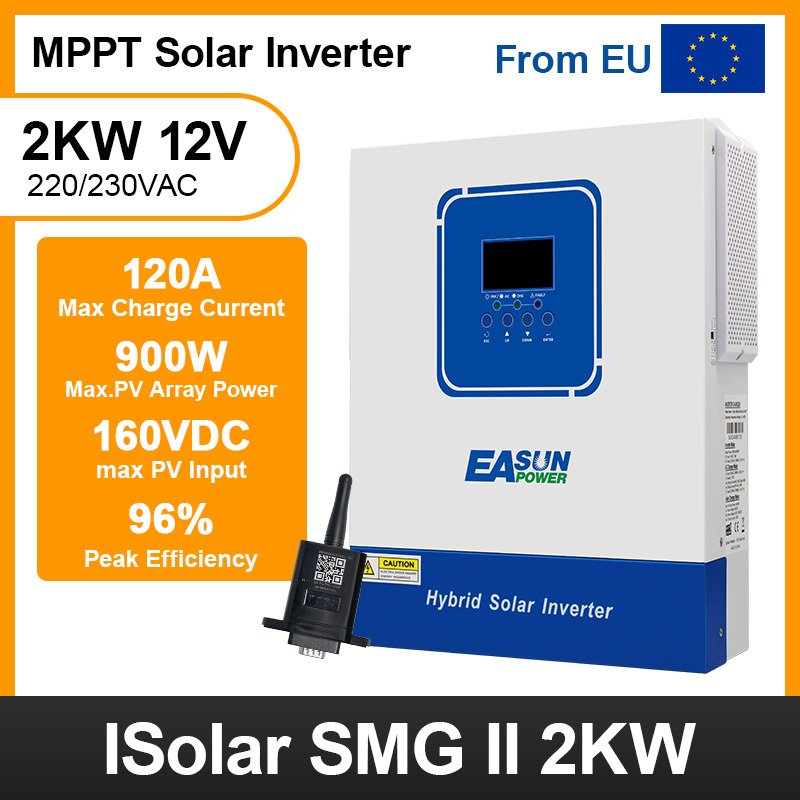

ISolar-SMG-II-2KW-1 2V WiFi |
|
|
Capacity |
2KVA/1.5KW |
|
|
Parallel Capability |
NO |
|
|
Lithium Battery activation |
YES ( By PV only) |
|
|
Lithium Battery communication |
YES(RS485) |
|
|
INPUT |
||
|
Nominal Voltage |
230VAC |
|
|
Acceptable Voltage Range |
170-280VAC(For personal Computer);:90-280vac(For Home Appliances) |
|
|
Frequency |
50/60 Hz(Auto sensing) |
|
|
OUTPUT |
||
|
Nominal Voltage |
220/230VAC土5% |
|
|
Surge Power . |
3000VA |
|
|
Frequency |
50/60Hz |
|
|
Waveform |
Pure Sine wave |
|
|
Transfer Time |
10ms(For personal Computer);20ms(For Home Appliances) |
|
|
Peak Efficiency(PV to INV) |
96% |
|
|
Peak Efficiency(Battery to INV) |
93% |
|
|
Overload Protection |
5s@ > = 140% load; 10s@100%~ 140% load |
|
|
Crest Factor |
3:1 |
|
|
Admissible Power Factor |
0.6~1 (inductive or capacitive) |
|
|
BATTERY |
|
|
|
Battery Voltage |
12V |
|
|
Floating Charge Voltage |
13.5V |
|
|
OverCharge Protection |
14.1V |
|
|
Charging Method |
CC/ CV |
|
|
SOLAR CHARGER & AC CHARGER |
|
|
|
Solar Charger Type |
MPPT |
|
|

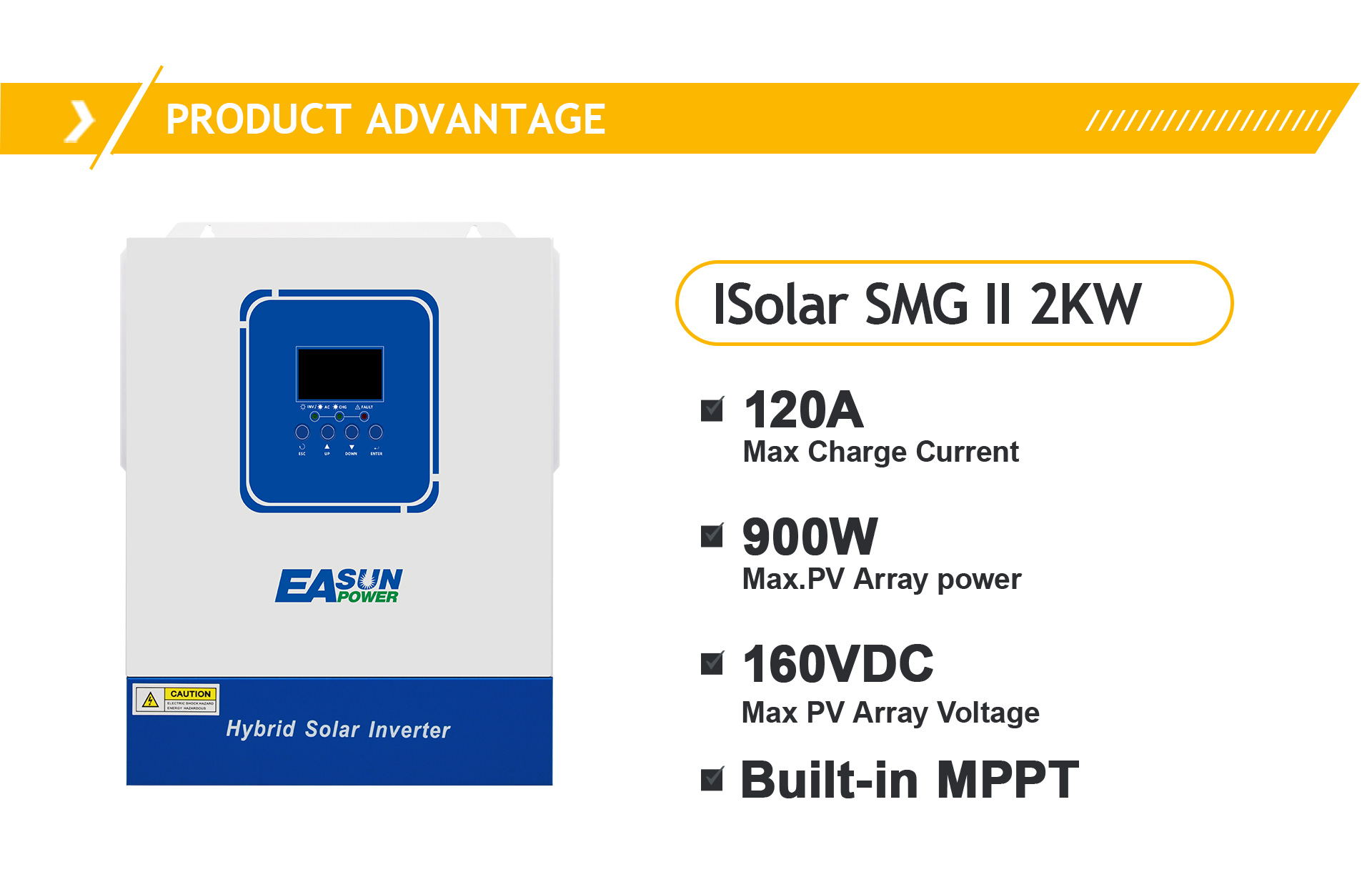

Max.PV Array Power |
900W |
|
|
Max.PV Array Open Circuit Voltage |
160VDC |
|
|
PV Array MPPT Voltage Range |
30VDC~160VDC |
|
|
Max.Solar Input Current |
50A |
|
|
Max.Solar Charge Current |
60A |
|
|
Max.AC Charge Current |
80A |
|
|
Max.Charge Current (PV+AC) |
120A |
|
|
PHYSICAL |
|
|
|
Dimensions,D x W x H(mm) |
358x295x105.5 |
|
|
Package Dimensions,D x W x H(mm) |
465x380x1 75 |
|
|
Net Weight(Kg) |
6 |
|
|

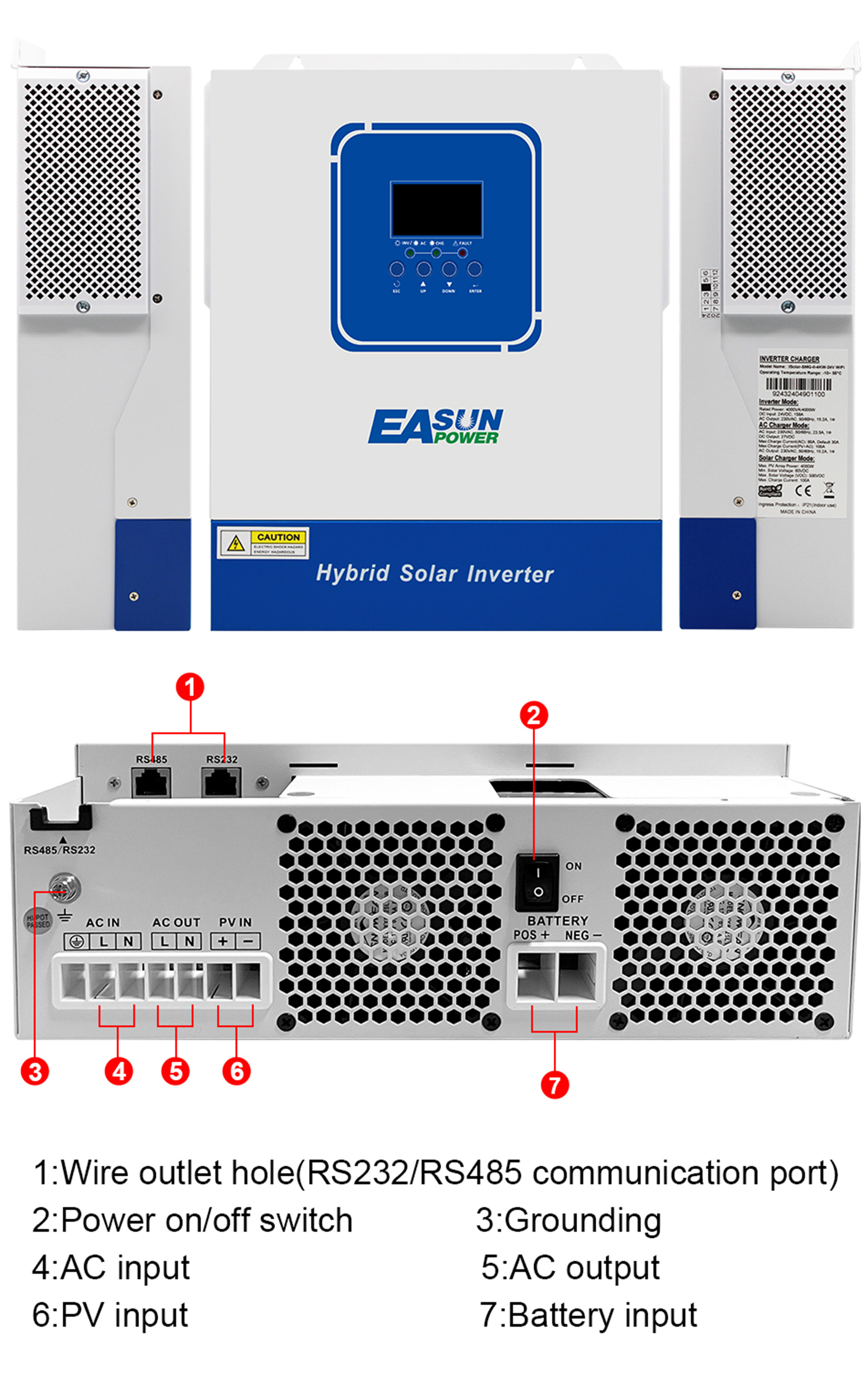

Communication Interface |
RS232 + RS485 |
|
|
ENVIRON MENT |
|
|
|
Operating Temperature Range |
(-10°C to 50°C) |
|
|
Storage Temperature |
(-15°C ~ 50°C) |
|
|
Humidity |
5% to 95% Relative Humidity ( Non-condensing ) |
|
