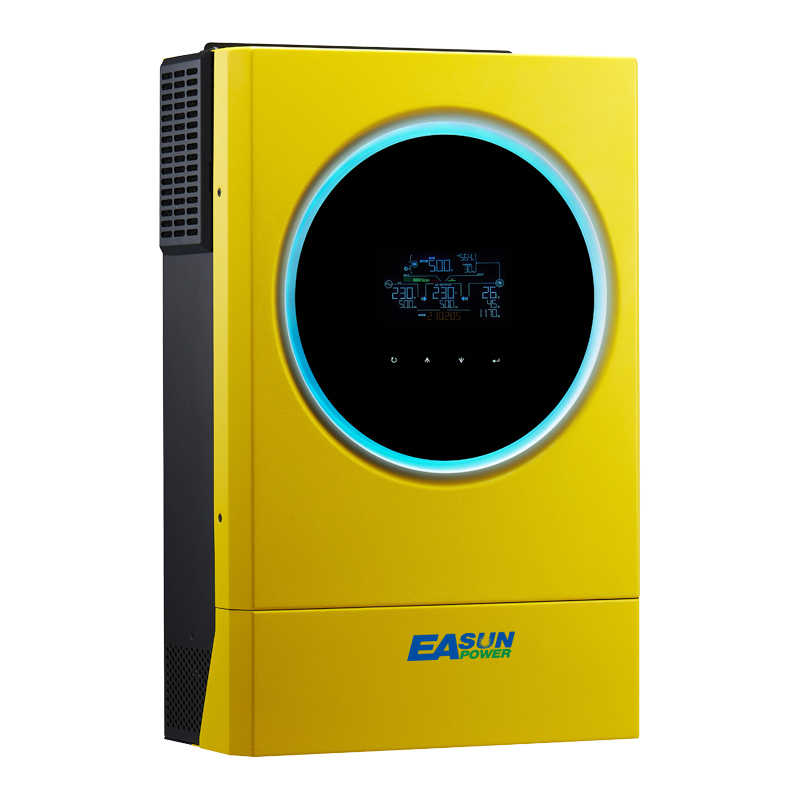

Easun 5.6KW Hybrid Inverter 120A MPPT Parallel 3 Phase Output Bulit-in WiFi
$490.00 USD
$560.00 USD
Rabatt $70.00 USD
Beregn fraktkostnad i kassen
Mängden
IGrid-SV-IV-5.6KW Monitor Software

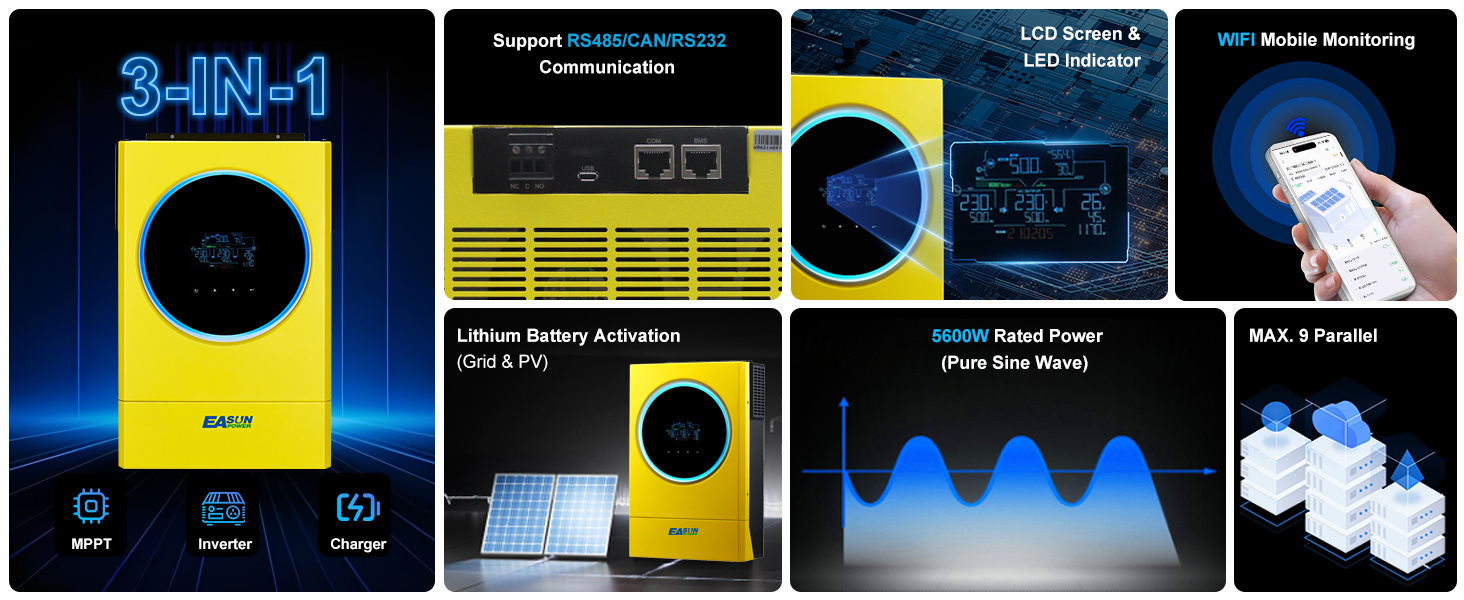

| Main Features: |
| Customizable status LED ring with RGB lights |
| Touchable button with 4.3" colored LCD |
| Supports USB On-the-Go function |
| Data log events stored in the inverter |
| Self-consumption and Feed-in to the grid |

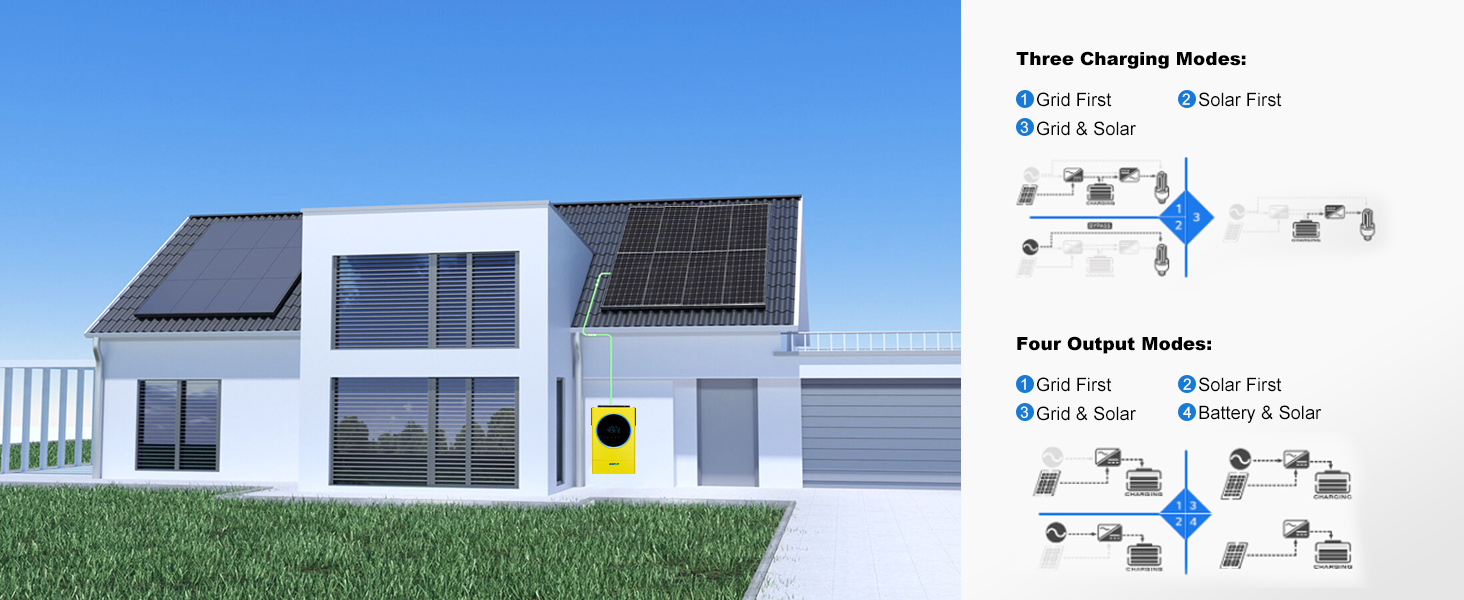

| Programmable supply priority for PV, Battery or Grid |
| User-adjustable charging current and voltage |
| Programmable multiple operationmodes:Grid-tie,off-gridand |
| Model: | IGrid-SV-IV-5.6KW |
| Warranty: | 1 year |
| Parallel Function: | yes, up to 9 units, support three-phase |
| Type: | off grid + on grid |
| Rated Load Power: | 5600W |
| Max Charging Current: | 120A |

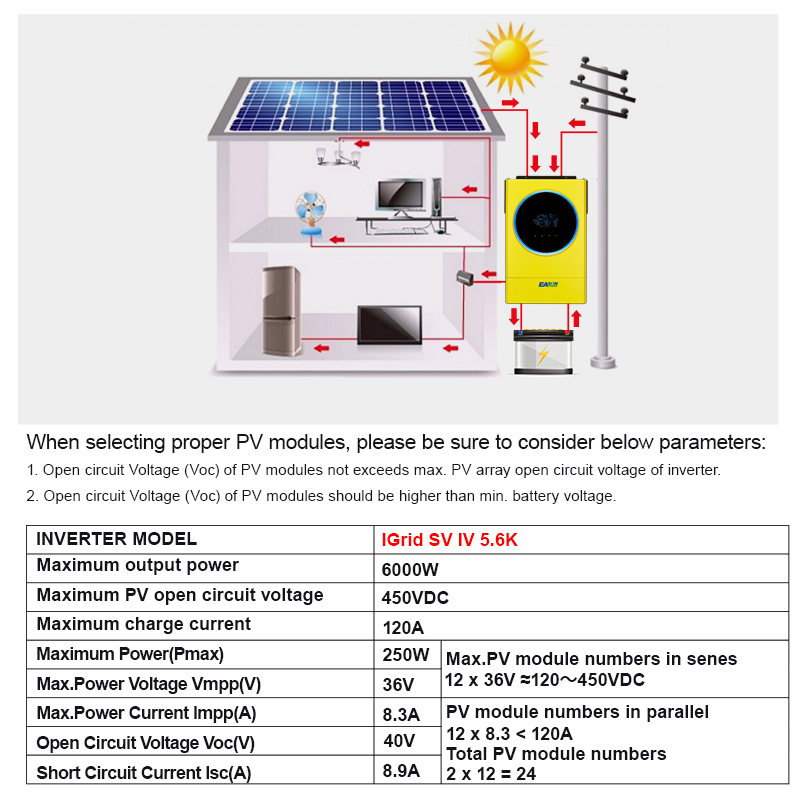

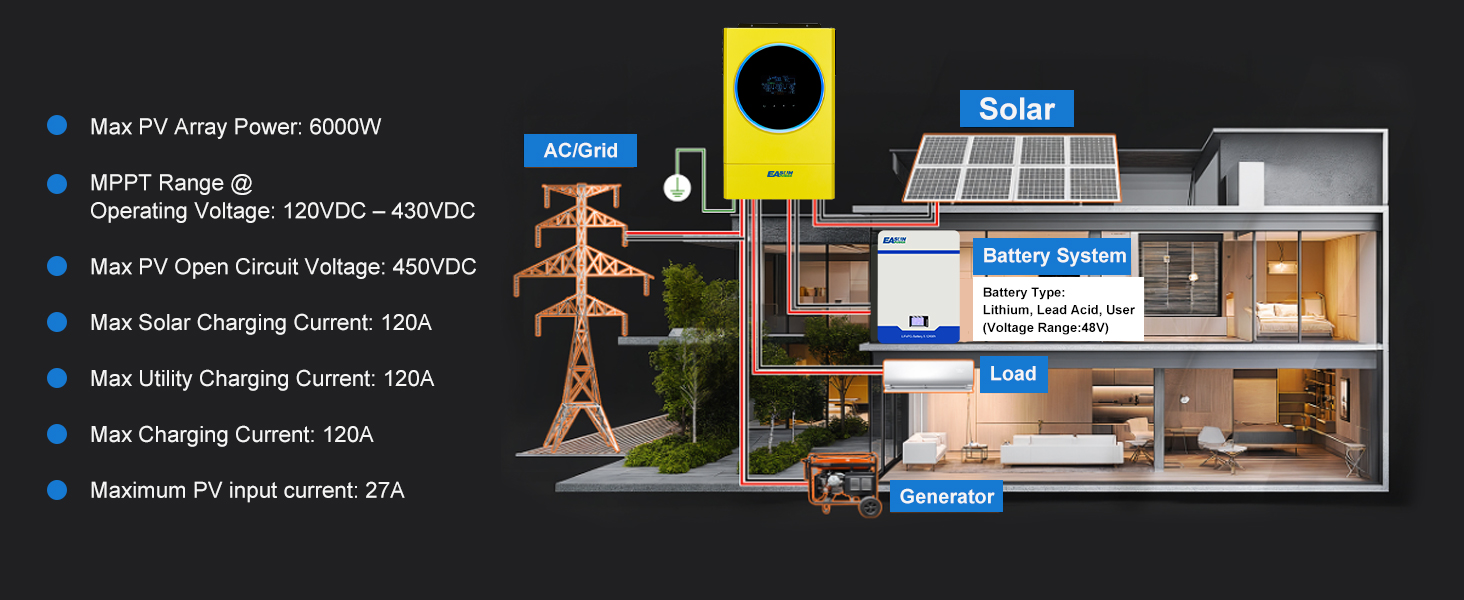

| Max PV Array Power: | 6000W |
| Max PV Array Current: | 27A |
| PV Input Voltage Range: | 120~450VDC |
| MPPT Working Voltage: | 150~430VDC |
| Battery Voltage: | 48V |
| Battery Type: | lead-acid battery or lithium battery |
| AC Input Voltage: | 170 - 280VAC |
| AC Output Voltage: | 220/230/240VAC |
| Surge Power: | 11200VA |
| Output Frequency: | 50Hz (default); 60Hz (setting) |
| Inverter Efficiency: | 93% |
| Output Waveform: | pure sine wave |

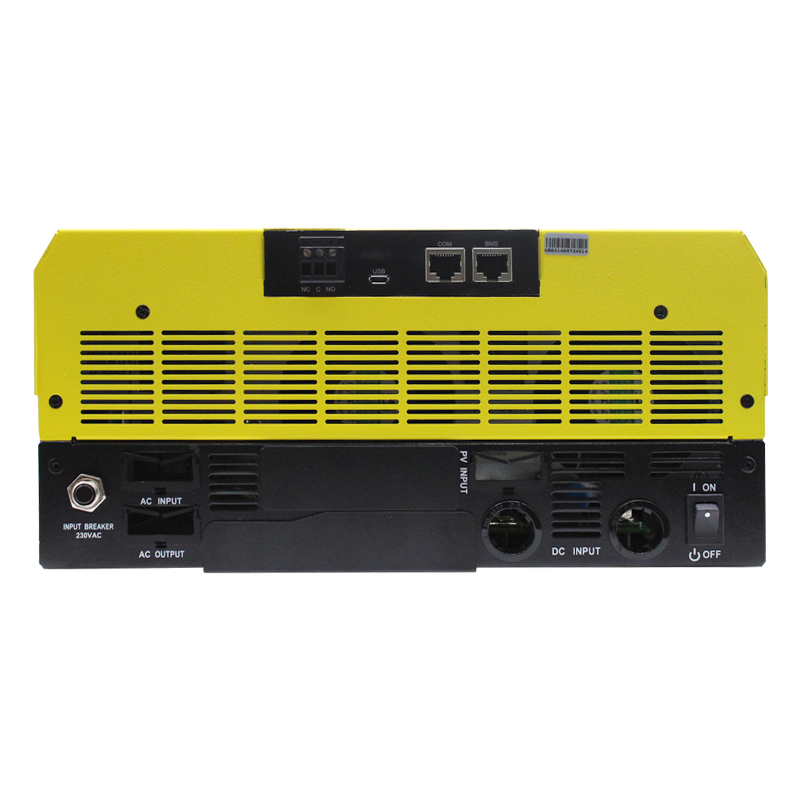

| Communication: | RS232/RS485/USB/dry contact |
| Transfer Time: | 10ms (personal computer); 20ms (home appliance) |
| Humidity: | 5% to 95% relative humidity (non-condensing) |
| Operating Temperature: | -15°C~ 60°C |
| Dimension.D*W*H(mm): | 140x295x468 |
| Net Weight(kg): | 12 |
