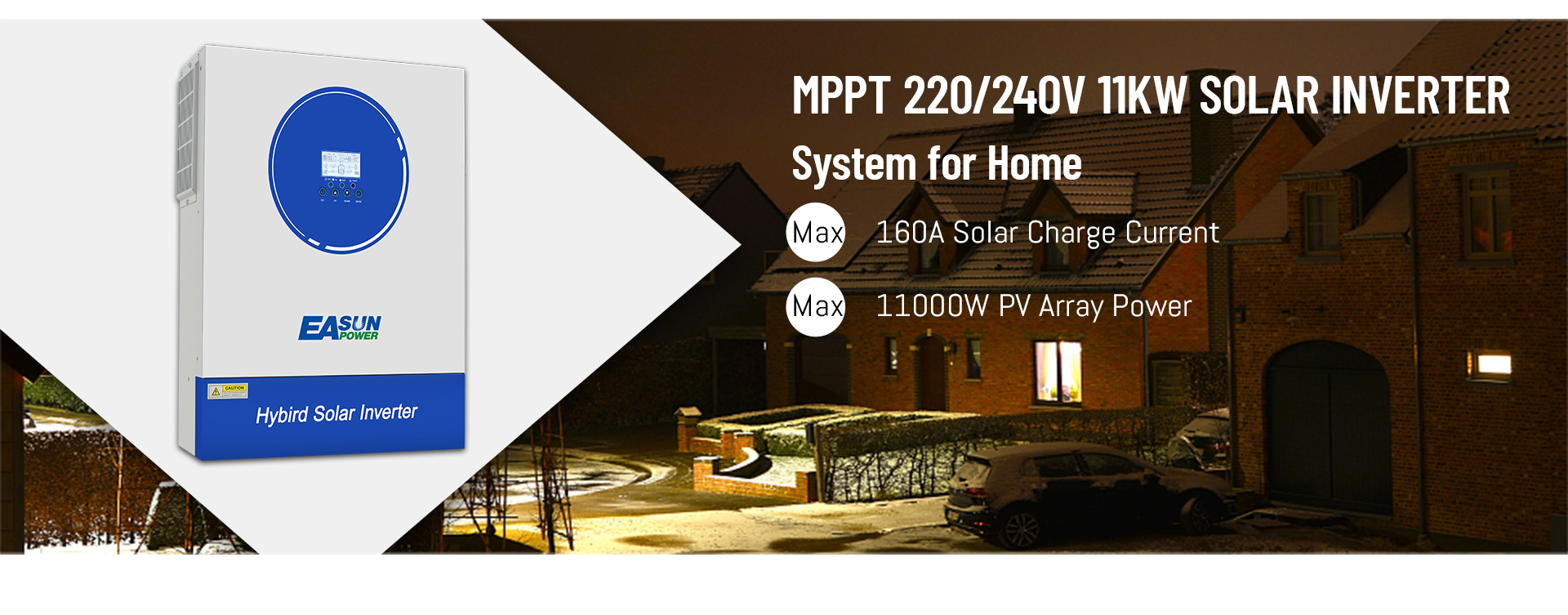

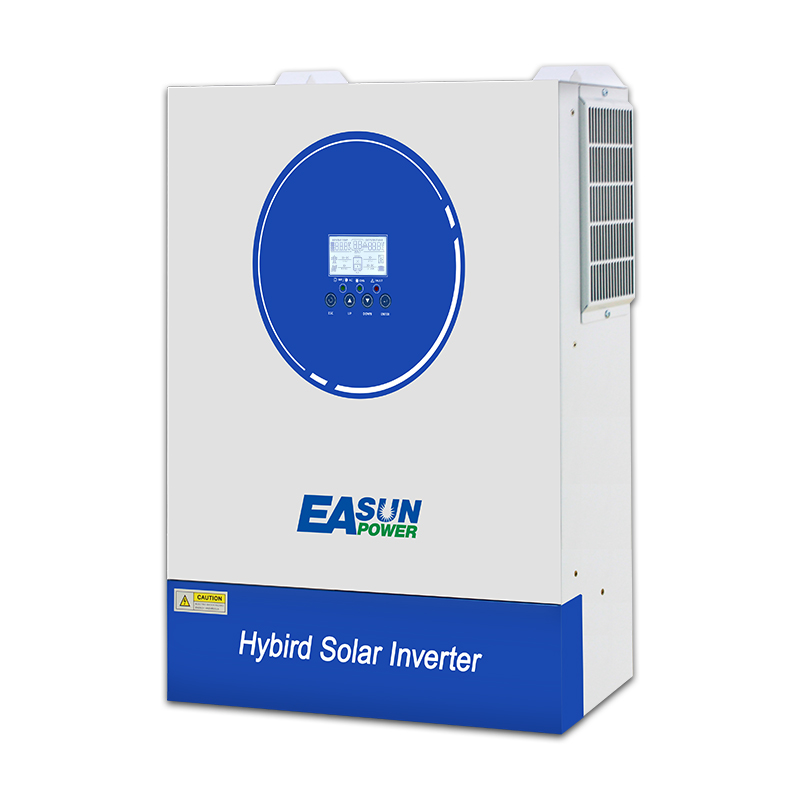

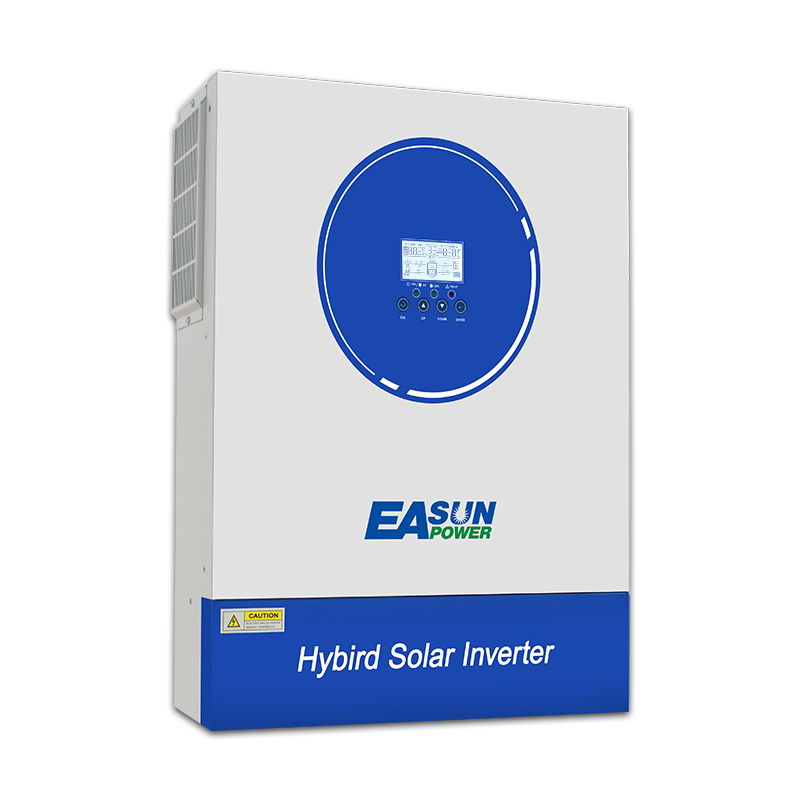

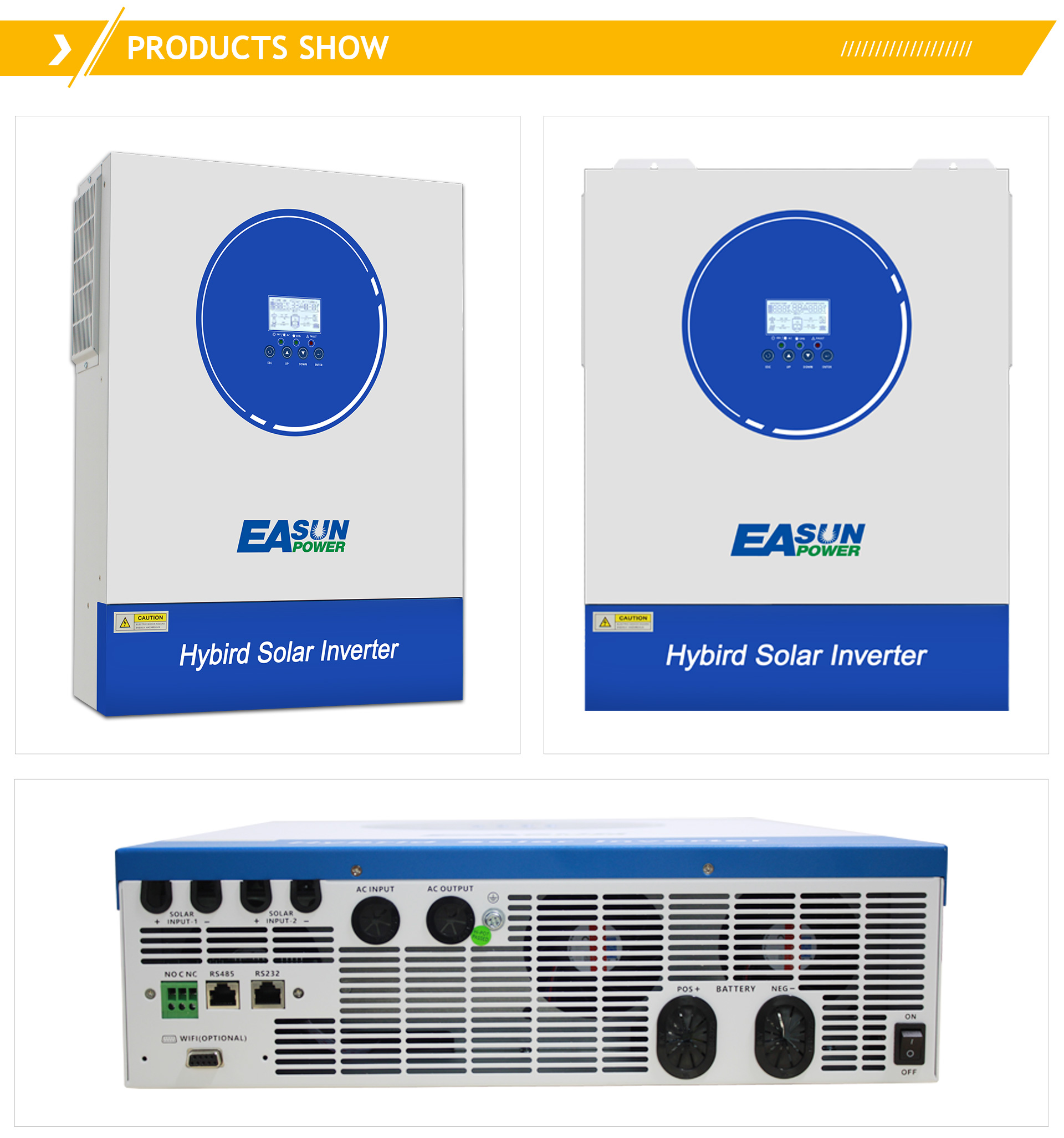

Easunpower 11KW Off Grid Inverter 160A MPPT Charger With WiFi
|
MODEL |
ISolar- SMG-II-8.5KW-48V-WiFi |
ISolar- SMG-II-11KW-48V-WiFi |
|
Capacity |
8.5KVA/8.5KW |
11KVA/11KW |
|
Maximum PV Input Power |
10KW |
11KW |
|
Parallel Capability |
NO |
NO |
|
Lithium Battery Activation |
YES ( By PV or Utility) |
|
|
Lithium Battery Communication |
YES(RS485) |
|
|
INPUT |
||
|
Nominal Voltage |
230VAC |
|
|
Acceptable Voltage Range |
170-280VAC(For personal Computer);:90-280VAC(For Home Appliances) |
|
|
Frequency |
50/60 Hz (Auto sensing) |
|
|
OUTPUT |
||
|
Nominal Voltage |
220/230/240VAC |
|
|
Surge Power |
17000VA |
22000VA |
|
Frequency |
50/60 Hz |
|
|
Waveform |
Pure Sine wave |
|
|
Transfer Time |
10ms(For personal Computer);20ms(For Home Appliances) |
|
|
Peak Efficiency |
94% |
|
|
Overload Protection |
5s@＞=140% load; 10s@110%~140% load |
|
|
Admissible Power Factor |
0.6~1 (inductive or capacitive) |
|
|
BATTERY |
||
|
Battery Voltage |
48VDC |
48VDC |
|
Maximum Discharge Current |
1 80A |
220A |
|
Floating Charge Voltage |
54VDC |
54VDC |
|
OverCharge Protection |
63VDC |
63VDC |
|
Charging Method |
CC/CV |
|
|
SOLAR CHARGER & AC CHARGER |
||
|
Solar Charger TYPE |
MPPT |
MPPT |
|

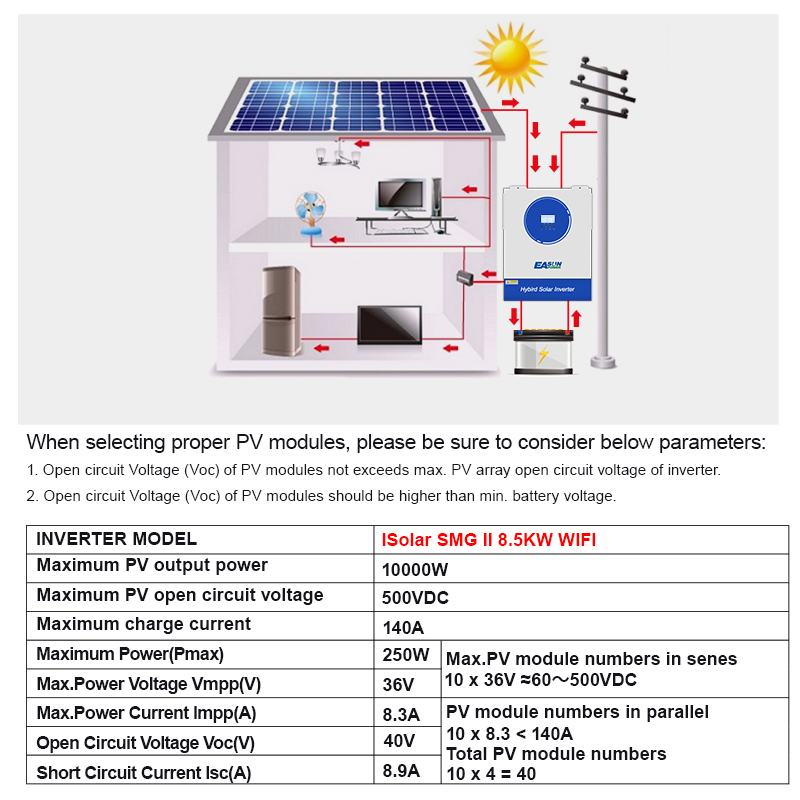

Max.PV Array Power |
5000W*2 |
5500W*2 |
|
Max. PV Array Open Circuit Voltage |
500VDC |
500VDC |
|
PV Array MPPT Voltage Range |
60VDC~500VDC |
60VDC~500VDC |
|
Max. Solar Input Current |
18A*2 |
18A*2 |
|
Max. Solar Charge Current |
140A |
160A |
|
Max. AC Charge Current |
120A |
120A |
|
Max. Charge Current |
140A |
160A |
|
PHYSICAL |
||
|
Dimensions, D x W x H(mm) |
540*415*122 |
540*415*122 |
|
Net Weight (Kgs) |
14 |
15 |
|

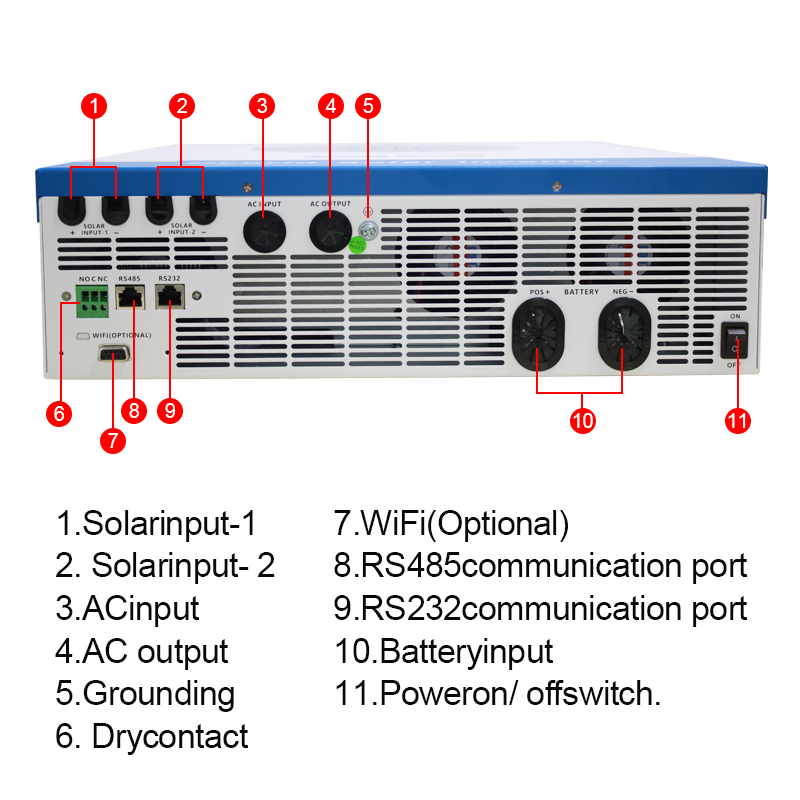

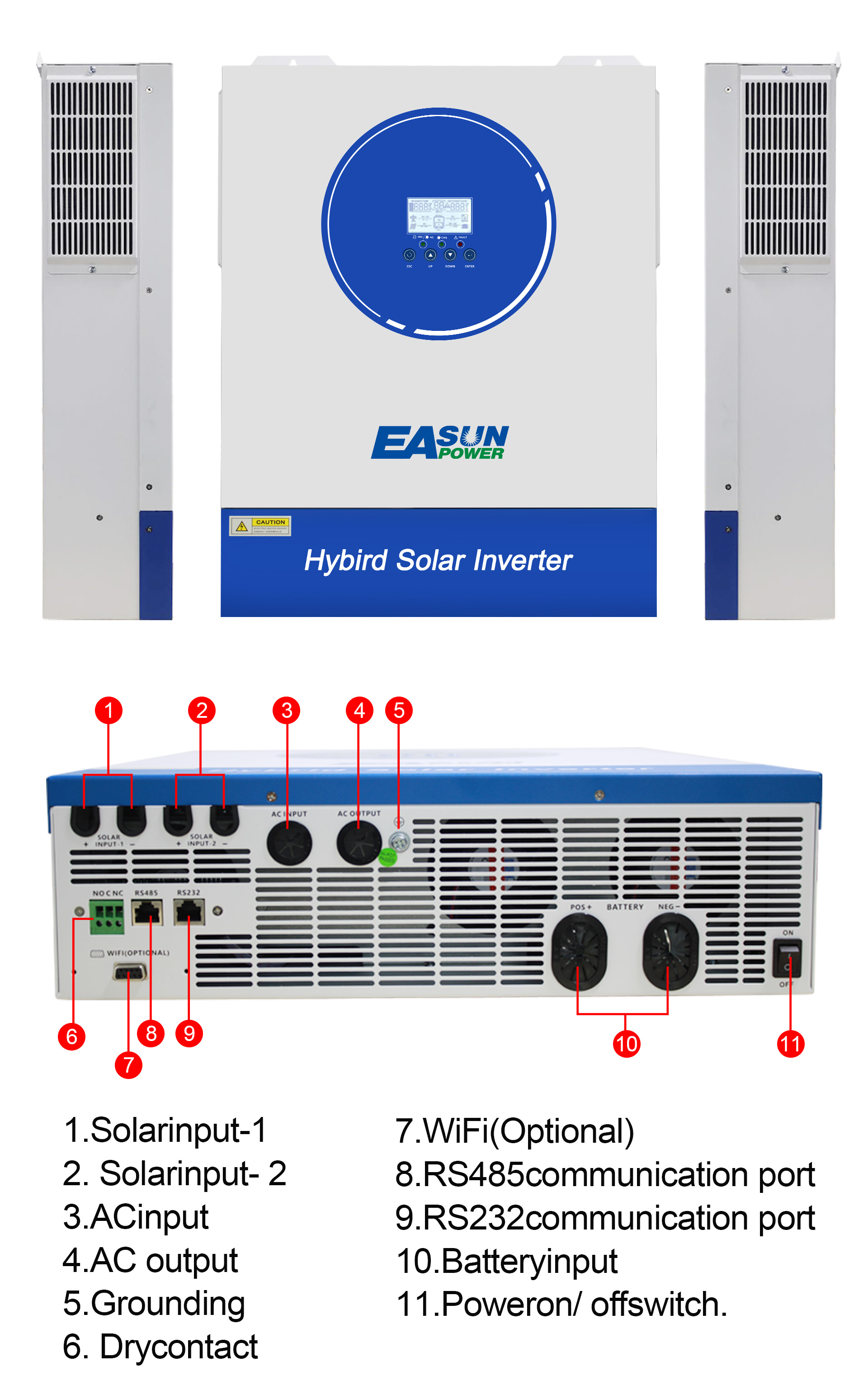

Communication Interface |
RS232/RS485/DRY CONTACT |
|
|
LCD |
YES |
|
|
ENVIRONMENT |
||
|
Operating Temperature Range |
-10°C to 55°C |
|
|
Storage temperature |
-15°C~ 60°C |
|
|
Humidity |
5% to 95% Relative Humidity (Non-condensing) |
|
