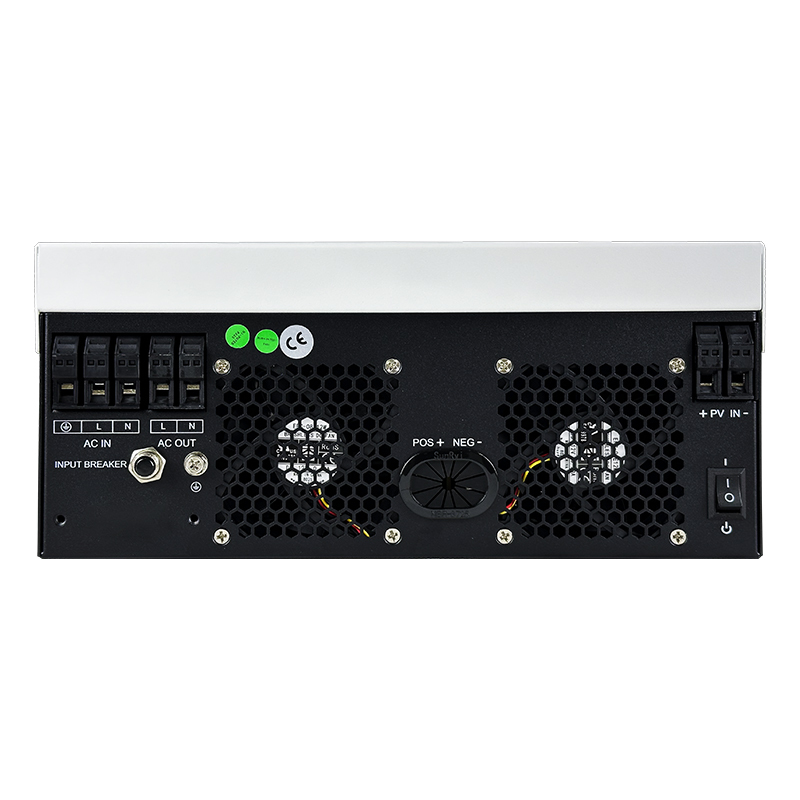

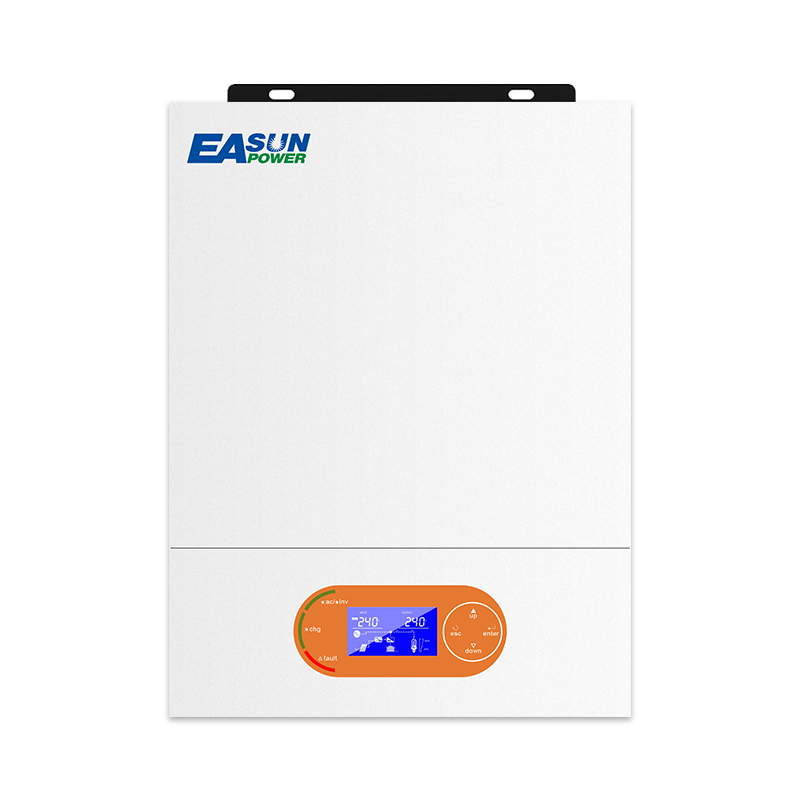

Easun 6KW Off Grid Invrerter 120A MPPT Charger With WiFi NO parallel

model

Isolar SMR II 4KW

Isolar SMR II 6KW

Rated Power

4000VA/4000W

6000VA/6000W

AC INPUT

AC Voltage

230VAC

Voltage Range

170-280VAC（For Personal Computers）；90-280 VAC（For Home Appliances）

Frequency Range

50/60Hz（Auto sensing）

AC OUTPUT

Surge Power

8000VA

12000VA

AC Voltage Regulation (Battery Mode)

230VAC土5%

Rated frequency

50/60Hz

Efficiency (Peak)

93%

Transfer Time

10ms (For Personal Computers) ; 20ms (For Home Appliances)

BATTERY

Battery Voltage

24VDC

48VDC

Floating Charge Voltage

27VDC

54VDC

Overcharge Protection

33VDC .

63VDC

Battery type

Lithium/L ead-acid

SOLAR CHARGER & AC CHARGER

Maximum PV Array Open Voltage(V)

500VDC

Maximum PV Array Power

5000W

6000W

MPPT voltage range(V)

60~450VDC

Maximum input current

27A

MPPT tracker/strings

1

Maximum solar charge current

120A

Maximum AC charge current

100A

Maximum charge current

120A

PROTECTION & FEATURE

AC overcurrent

Yes

AC overvoltage

Yes

Over temperature protection

Yes

Smart load management

Yes(optional)

On Grid

Yes(optional)

GENERAL PARAMETERS

Operation temperature

-10°C ~ 50°C

Relative humidity

5% ~ 95% (Non-condensing)

Altitude

(2000m Derating)

Dimensions DxWxH(mm)

400*300*115

Net Weight(KG)

8.5

9

COMMUNICATION

Interface

Standard:RS232,USB; CAN&RS485; Optional:WiFi,Bluetooth

Safety standard

EN/IEC62109-1,EN/IEC62109-2
