【6.2KW Off Grid Inverter 】【Parallel 3 Phase】【120A MPPT+WiFi】
$717.70 USD $899.00 USD Save $181.30 USD
Free worldwide shipping
Free returns
Carbon neutral
Secure payments
Ship From
EU
Size
6.2kw
Quantity
Only 33 left
Volume Pricing
Quantity
Price
1+
$717.70 USD each
Inventory quantity : 33
Description

ISolar-SMG-II-5.6KP-WIFI Manual

ISolar-SMG-II-6.2KP-WIFI Manual

Features:
*pure sine wave soalr inverter
*Output power factor 1
*High PV input voltage range

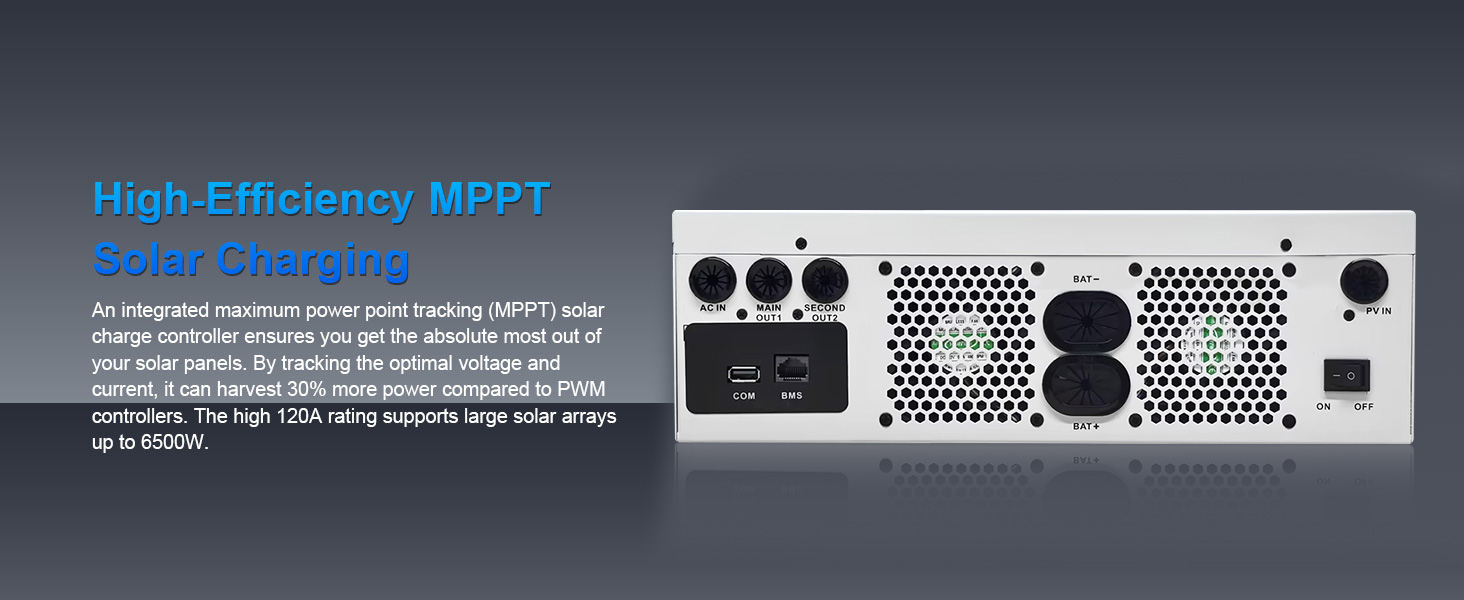

*Built-in MPPT soalr controller
*Battery equalization function to optimize
*Battery performance and extend lifecycle
*Inverter running without barrery
*Built-in anti-dusk kit for harsh environment
*WIFI-GPRS remote monitoring (WIFI Plug included)
*Detachable LCD(Optional)

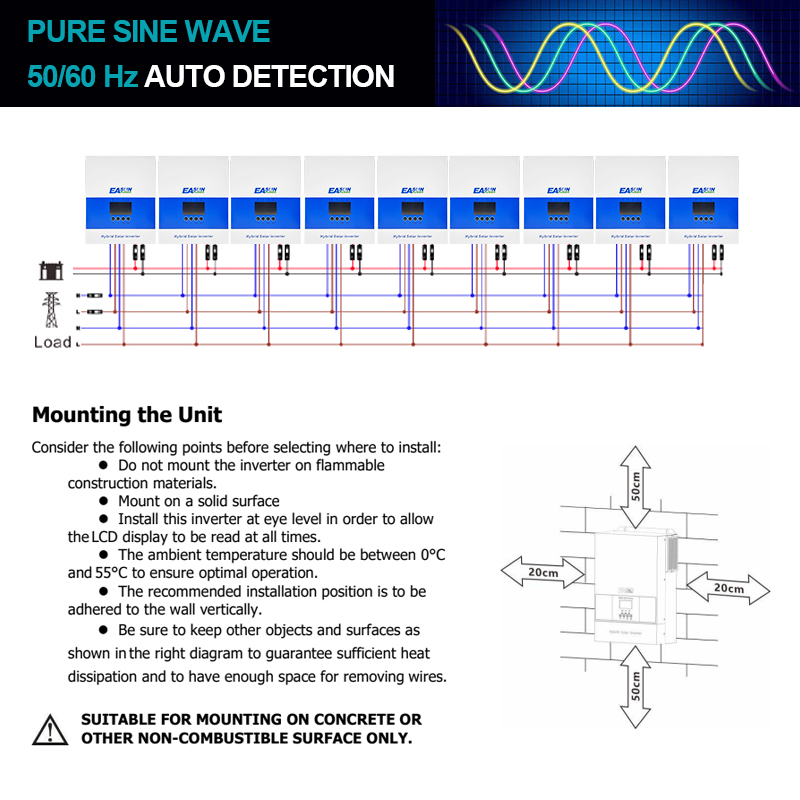

* Built-in Parallel Kit

MODEL

ISolar-SMG-II-6.2KP-Wifi

Capacity

6.2KVA/6.2KW

Parallel Capability

YES,12 Units

INPUT



Nominal Voltage

230VAC

Acceptable Voltage Range

170-280VAC(For personal Computer);:90-280vac(For Home Appliances)

Frequency

50/60 Hz(Auto sensing)

OUTPUT



Nominal Voltage

220/230VAC+5%

Surge Power

12400VA

Frequency

50/60Hz

Waveform

Pure Sine wave

Peak Eficiency(PV to INV)

96%

Peak Efficiency(Battery to INV)

93%

Crest Factor

3:1

BATTERY



Battery Voltage

48VDC

Floatig Charge Volage

54VDC

OverCharge Protectin

63VDC

Charging Method

CC/ CV

Solar Charger & AC Charger



Max.PV Array Power

6500W

Max.PV Array Open Circuit Voltage

500VDC

PV Array MPPT Voltage Range

60VDC~450VDC

Max.Solar Input Current

27A

Max.Solar Charge Current

120A

Max.AC Charge Current

80A

Max.Charge Current

120A

PHYSICAL



Dimensions,D x W x H(mm)

450*300*130

Package Dimensions,D x W x H(mm)

540x390x210

Net Weight(Kg)

12

Communication Interface

RS232 / RS485 / Dry-contact

ENVIRONMENT



Operating Temperature Range

(-10°C to 50°C)

Storage Temperature

(-15°C ~ 50°C)

Humidity

5% to 95% Relative Humidity ( Non-condensing )
