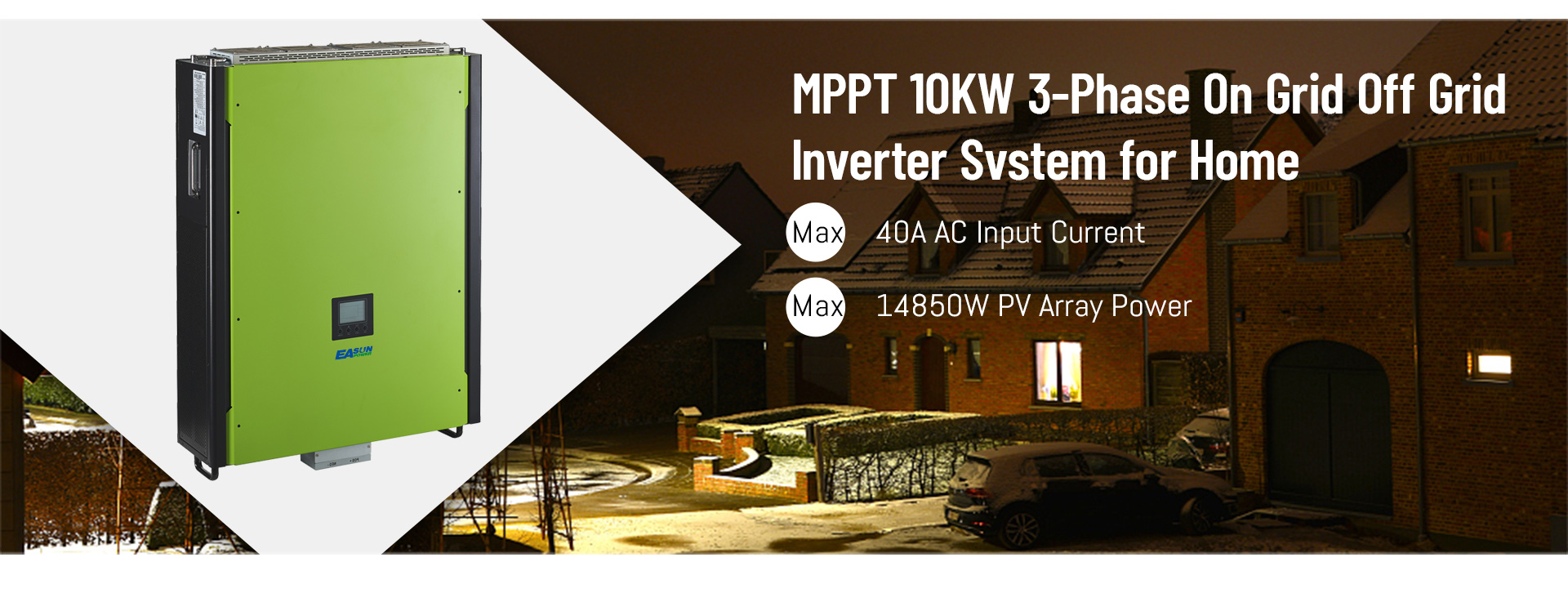

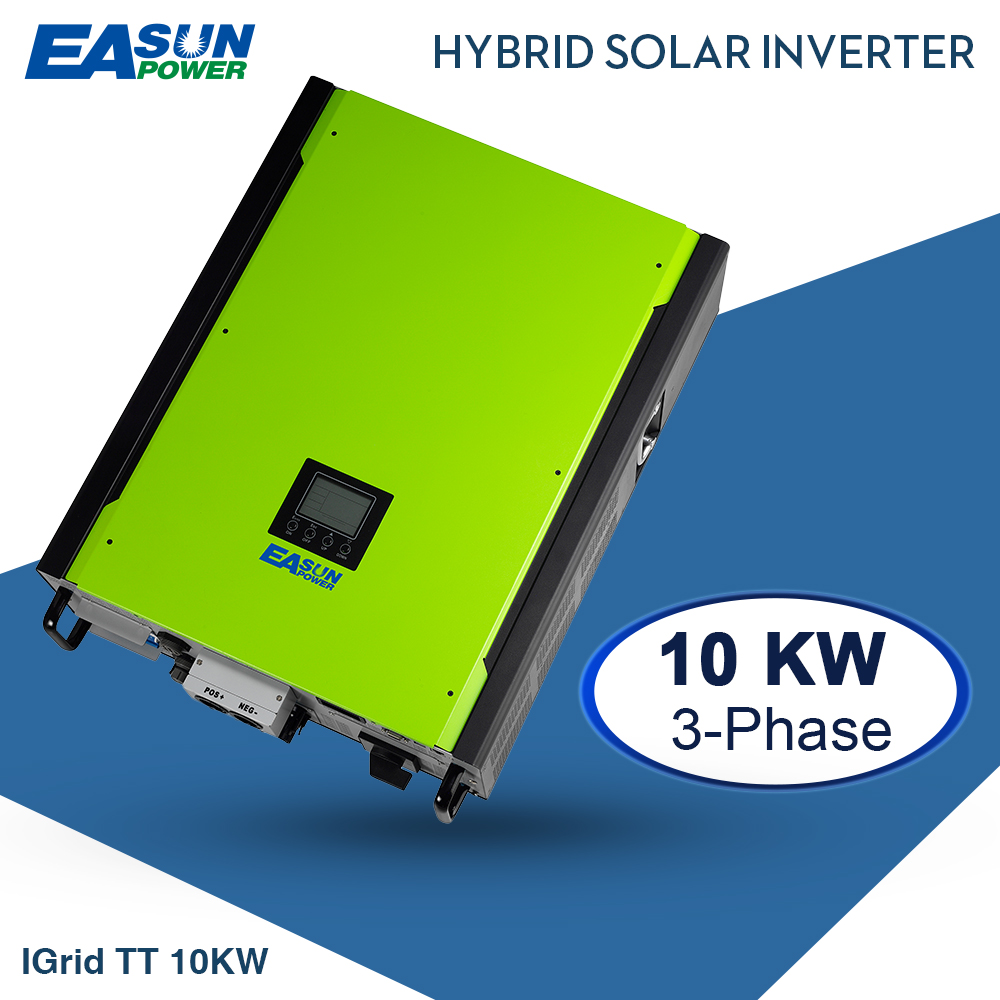

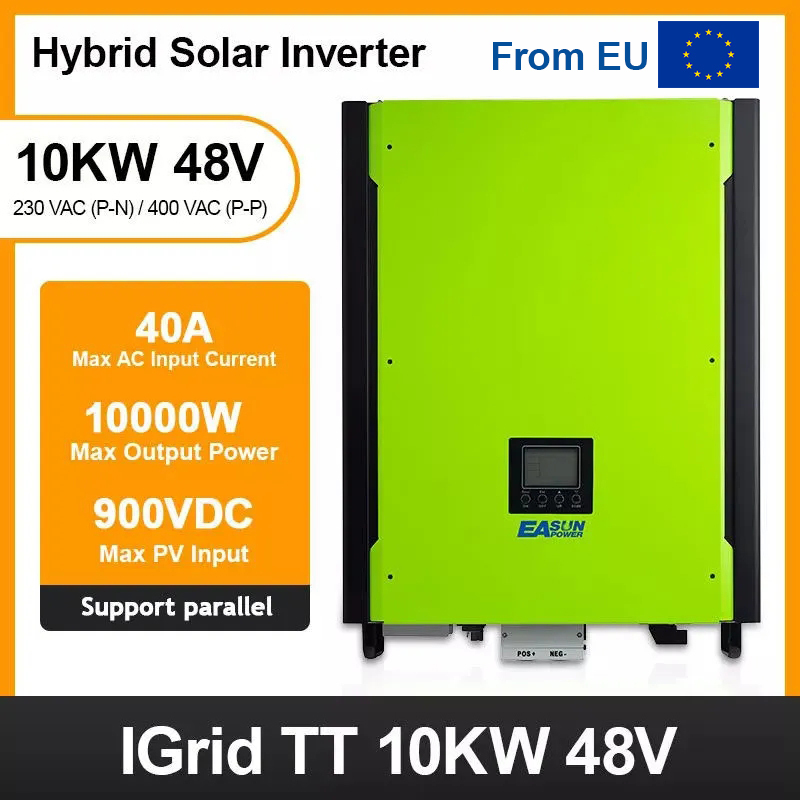

Easun Power 10KW 3 Phase Hybrid Solar Inverter 48V Double MPPT Controller
$3,257.00 USD
$3,689.00 USD
Reducere $432.00 USD
Calculul taxelor de expediere la finalizare
Cantitate
| Place of Origin: | China |
| Brand Name: | Easun power |
| Model Number: | IGrid TT 10KW |
| Input Voltage: | 380VAC |
| Output Voltage: | 380VAC |
| Output Current: | 40A |
| Output Frequency: | 50 Hz/60 Hz |
| Output Type: | Single, DUAL, Triple |
| Size: | 167.5 * 500 * 622mm |
| Type: | DC/AC Inverters |
| Inverter Efficiency: | 93% |
| Warranty: | 1 Year |
| Weight: | 54KG |
| Product name: | 10KW Solar Charger |

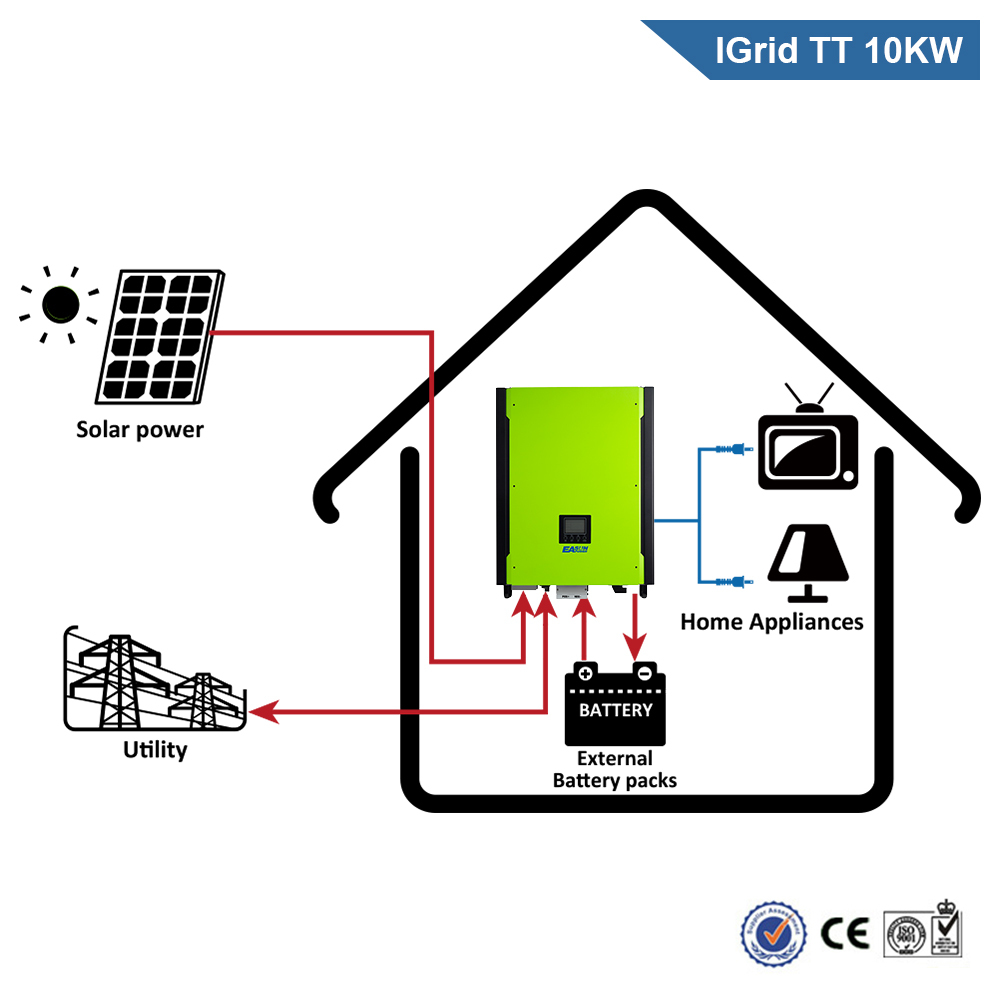

| Feature: | Hybrid solar inverter charger |
| Rated Power: | 10KW |
| Nominal DC Voltag: | 48VDC |
| Waveform: | Pure Sine Wave |
| Battery Voltage: | 48VDC |
| Maximum Battery Discharging Current: | 275 A |
| Maximum Charging Current: | 200 A |

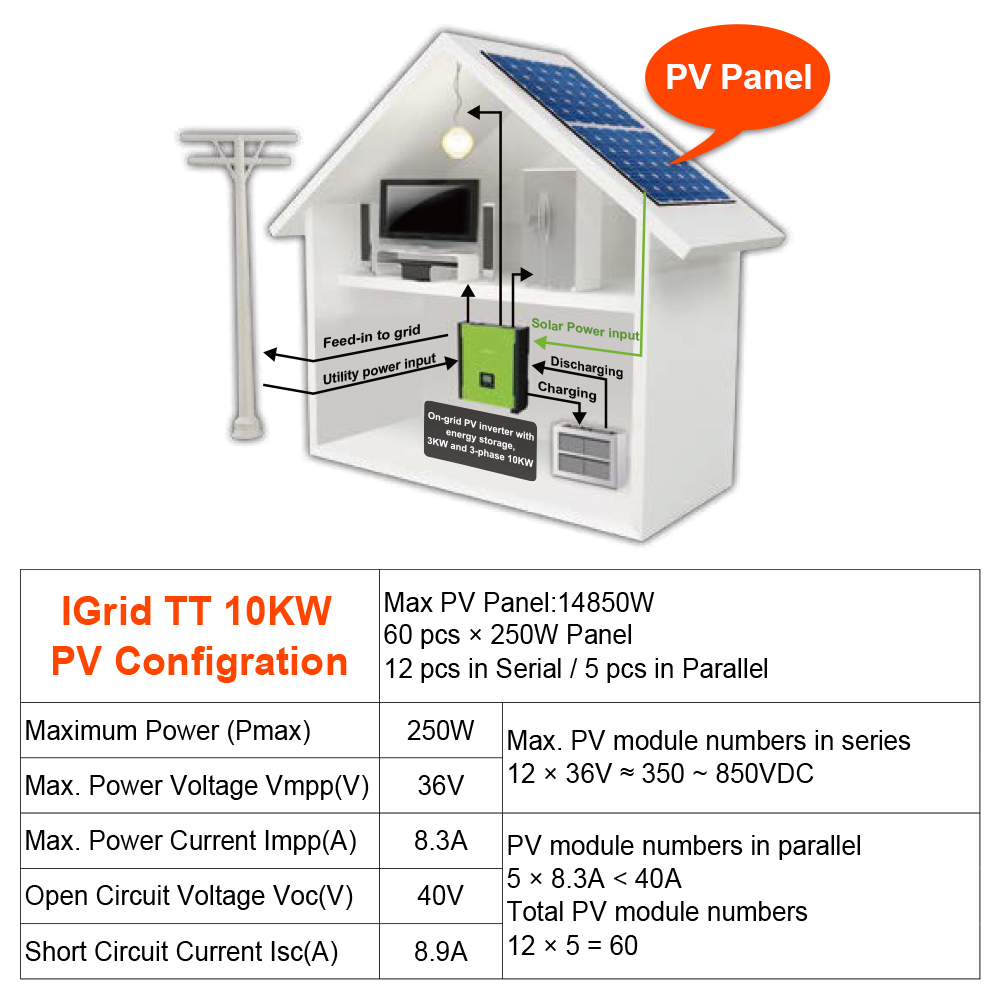

| Maximum PV Array Power: | 14850W |
Product Main Features:
* 10000W 48V Pure Sine Wave Inverer + 14850W MPPT Solar Charger + 40A Battery Charger
* Max PV Input 900Vdc
* Built-in 40A Battery Charger
* Works With 380~415Vac Load Only

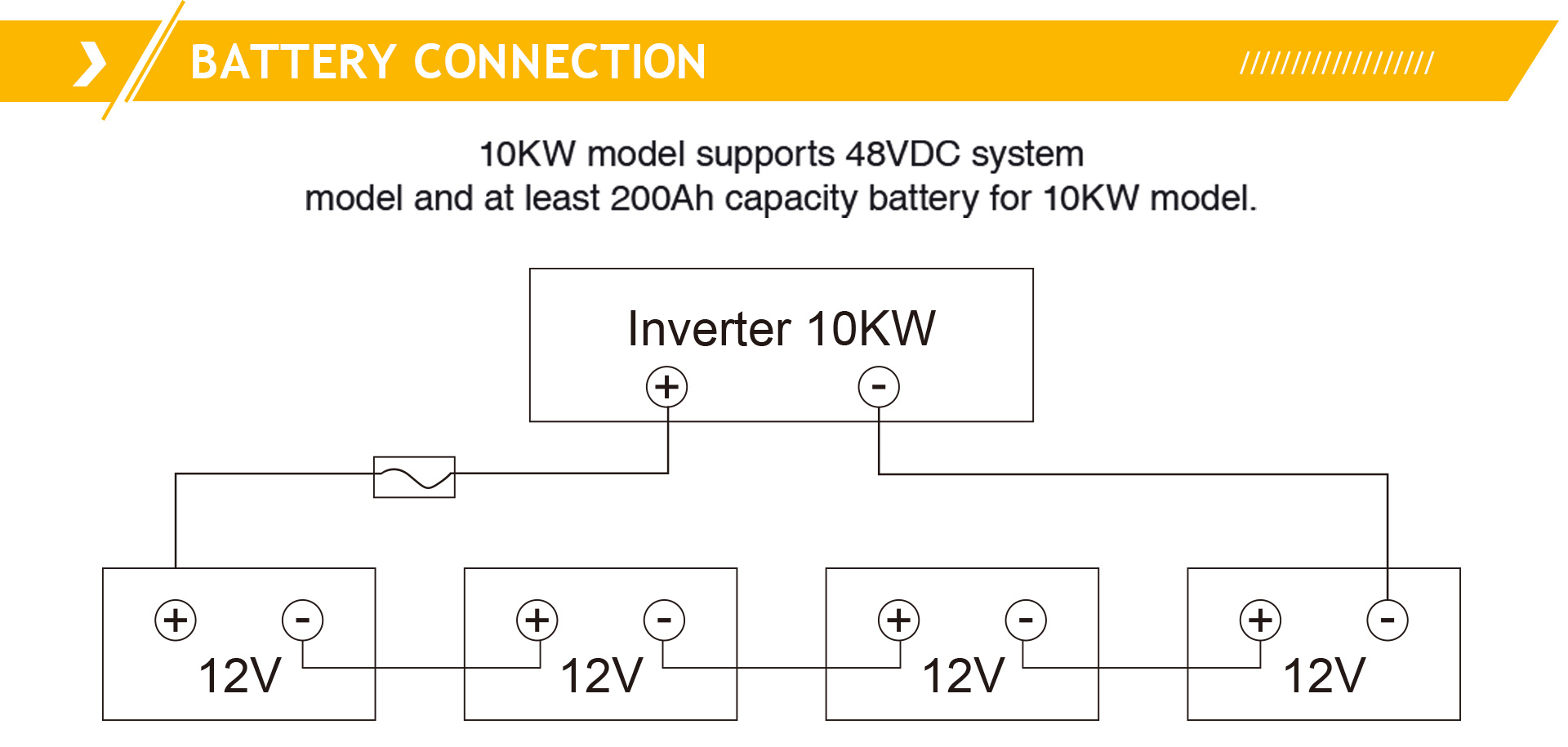

* Works With 48v Battery System only
* Max Grid-Tie conversion efficiency up to 96%
* Peak inverter efficiency 93%
* High efficiency transformerless design
* Large LCD display of comprehensive system info
* RS232 and USB interface available
* User programmable functions
* Bundled Free monitoring software with setting programs
* CE, VDE4105 , AS 4777 certified
* Supports Parallel Function up to 6 units Max, built-in parallel board
* 10000W 48V Pure Sine Wave Inverer + 14850W MPPT Solar Charger + 40A Battery Charger
* Max PV Input 900Vdc
* Built-in 40A Battery Charger
* Works With 380~415Vac Load Only
* Works With 48v Battery System only
* Max Grid-Tie conversion efficiency up to 96%
* Peak inverter efficiency 93%
* High efficiency transformerless design
* Large LCD display of comprehensive system info
* RS232 and USB interface available
* User programmable functions
* Bundled Free monitoring software with setting programs
* CE, VDE4105 , AS 4777 certified
* Supports Parallel Function up to 6 units Max, built-in parallel board
|

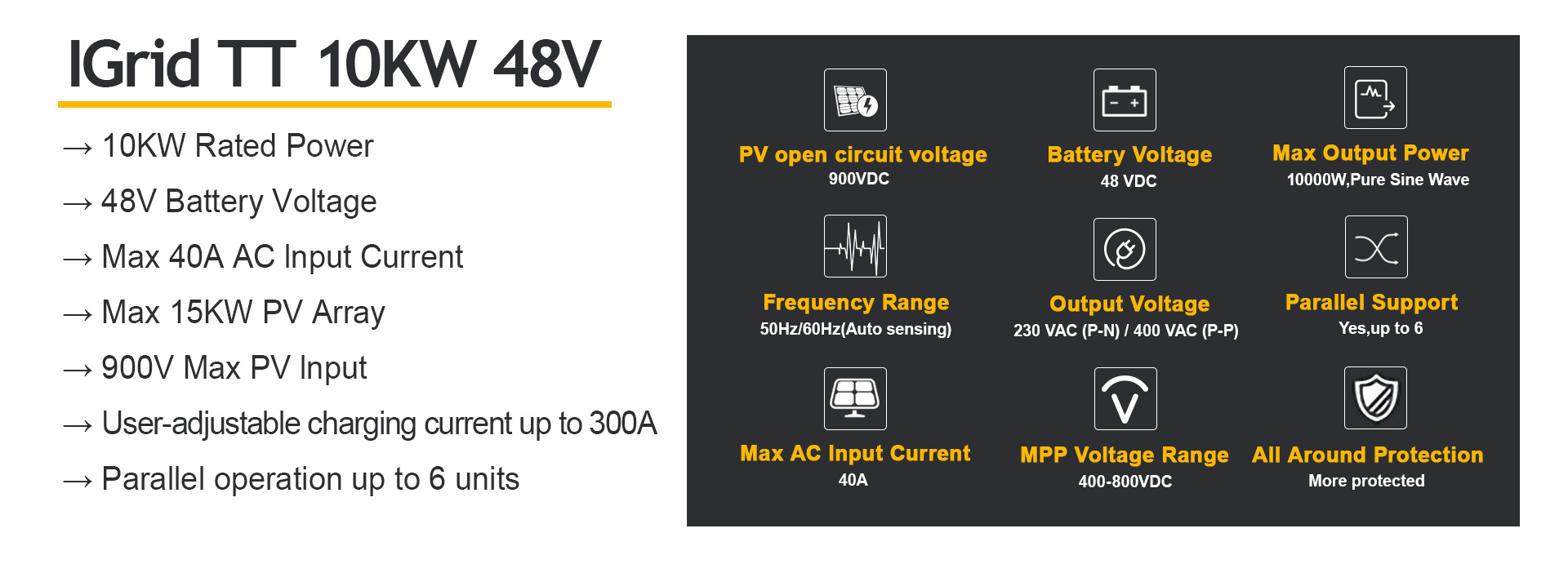

MODEL
|
IGrid TT 10KW
|
|
RATED POWER
|
10000 W
|
|

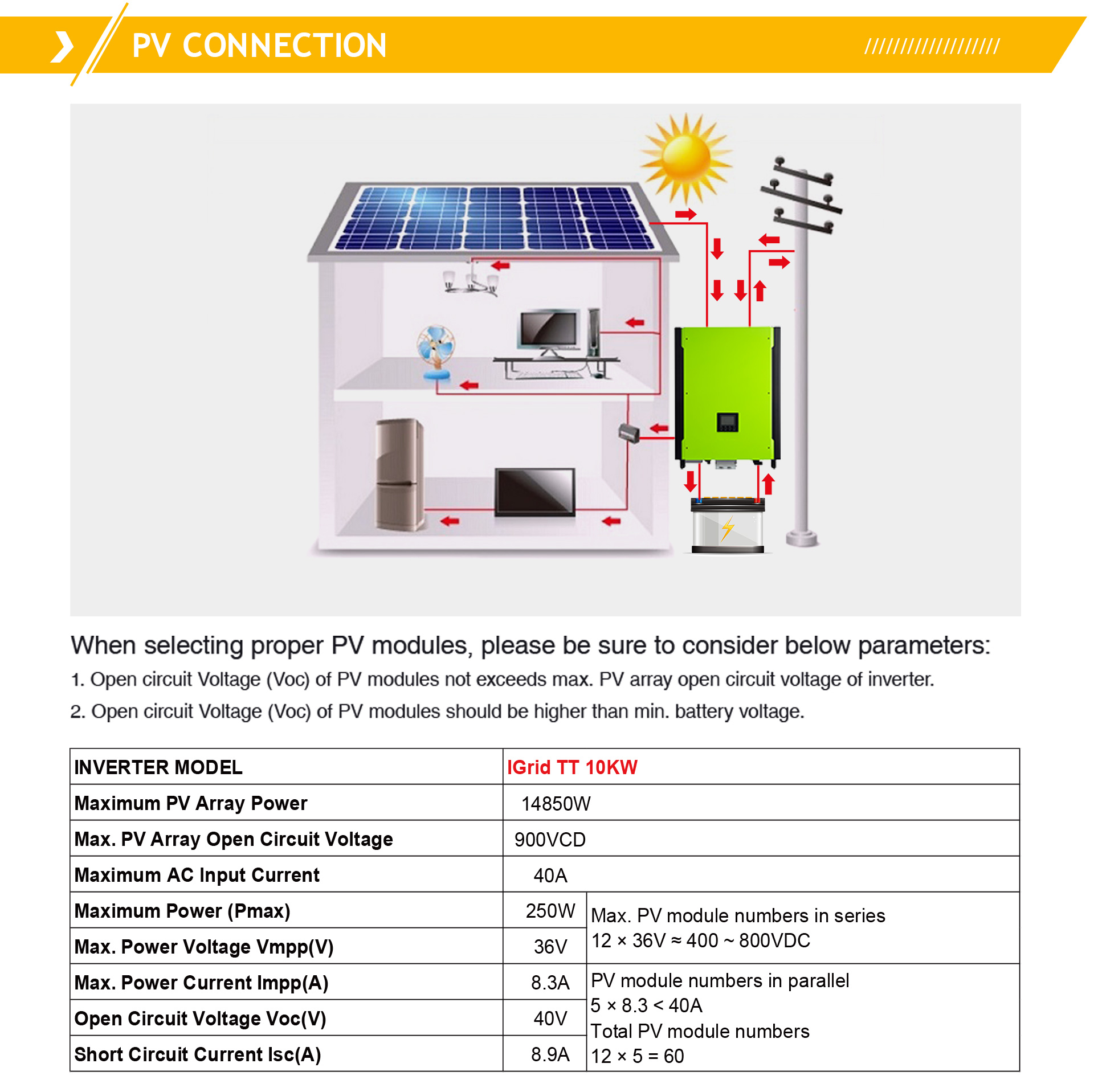

PV INPUT (DC)
|
|
|
Maximum DC Power
|
14850 W
|
|
Nominal DC Voltage
|
720 VDC
|
|
Maximum DC Voltage
|
900 VDC
|
|
Working DC Voltage Range
|
300 VDC ~ 900 VDC
|
|
Start-up Voltage / Initial Feeding Voltage
|
320 VDC / 350 VDC
|
|
MPP Voltage Range
|
350 VDC ~ 850 VDC
|
|
Maximum Input Current
|
2*18.6 A
|
|
Isc PV (absolute maximum)
|
25 A
|
|
Max. inverter back feed current to the array
|
0 A
|
|
GRID OUTPUT (AC)
|
|
|
Nominal Output Voltage
|
230 VAC (P-N) / 400 VAC (P-P)
|
|
Output Voltage Range
|
184 - 265 VAC per phase
|
|
Output Frequency Range
|
47.5 ~ 51.5 Hz or 59.3~ 60.5Hz
|
|
Nominal Output Current
|
14.5 A per phase
|
|
Inrush Current/Duration
|
17 A per phase / 20ms
|
|
Maximum Output Fault Current/Duration
|
51 A per phase / 1ms
|
|
Maximum output Overcurrent Protection
|
51 A per phase
|
|
Power Factor Range
|
0.9 lead – 0.9 lag
|
|
AC INPUT
|
|
|
AC Start-up Voltage
|
120-140 VAC per phase
|
|
Auto Restart Voltage
|
180 VAC per phase
|
|
Acceptable Input Voltage Range
|
170 - 280 VAC per phase
|
|
Nominal Frequency
|
50 Hz / 60 Hz
|
|
AC Input Power
|
10000VA/10000W
|
|
Maximum AC Input Current
|
25 A
|
|
Inrush Input Current
|
25 A / 1ms
|
|
BATTERY MODE OUTPUT (AC)
|
|
|
Nominal Output Voltage
|
230 VAC (P-N) / 400 VAC (P-P)
|
|
Output Frequency
|
50 Hz / 60 Hz (auto sensing)
|
|
Output Waveform
|
Pure sine wave
|
|
Output Power
|
10000VA/10000W
|
|
Efficiency (DC to AC)
|
91%
|
|
BATTERY & CHARGER (Lead-acid/Li-ion)
|
|
|
DC Voltage Range
|
40 – 60 VDC
|
|
Nominal DC Voltage
|
48 VDC
|
|
Maximum Battery Discharging Current
|
275 A
|
|
Maximum Charging Current
|
200 A
|
